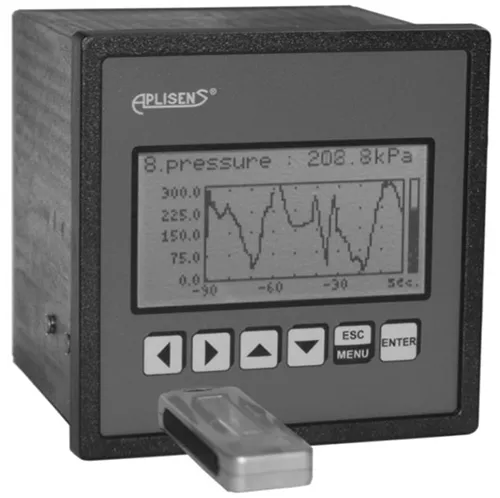

DATA LOGGER - PMS-90R
- Up to 8 inputs 0/4 20mA or PT100/PT500/PT1000
- 1 digital input for recording release
- 2 relay outputs in standard (optoMOS)
- USB Host port for flush data storage
- Power supply 19V ÷ 50V DC, 85 ÷ 260V AC
- Free configuration and recording software
Application and functions
The industrial data logger PMS-90R is designed to record and display current values as well as to present technological parameters in the form of graphs. The devices is equipped with 1, 4 or 8 U/I inputs (0/4-20mA, 0/1-5V, 0/2-10V) or RTD/TC inputs (Pt100, Pt500, Pt1000, TC type K, S, J, T, N, R, B, E), one impulse (digital) input for controlling the recording process and one USB Host port for flash data storage. The device has the memory capacity of 8 MB in version with USB (3 000 000 data recordings).
The measurement results can be represented in various forms (numerical, analog, graphic) equally as a singular reading, series of readings, or a group of channels. The archive of registered data can be searched, and the results of the search can be represented in graphic or tabular form.
The PMS-90 has 6 keys on the front panel. Keys enable the PMS-90R configuration. The menu assisted with full text descriptions makes the unit configuration of process quite easy. The data logger is fitted for galvanic insulated RS-485 interface, programmed with ModBus RTU transmission protocol. The PMS-90R can be programmed through PC with RS converter and Loggy Soft software.
