FITTING ACCESSORIES - VALVES
Needle valve VM-1
Material 316ss
Medium temperature, working pressure – according to the graph on page III/ 7
Ordering code:
Valve VM-1/M (input M20×1.5 M, output M20×1.5 F, Teflon packing)
Valve VM-1/G (input G1/2" M, output G1/2" F, Teflon packing)
Valve VM-1/graphite (input M20×1.5 M, output M20×1.5 F, Graphite packing)
Valve VM-1 oxygen (valve designed for contact with oxygen; input M20×1.5 M, output M20×1.5 F, Teflon packing)
Needle valve VM-1-R/R
Material 316ss
Medium temperature, working pressure – according to the graph on page IV/ 3
Input 1/2NPT F, output 1/2NPT F, Graphite packing, no vent port
Ordering code:
Valve VM-1-R/R/__
1 – Set of wieldable stainless steel connectors (316ss)
2 – Set of wieldable steel connectors (K11562)
3 – Set of connectors with Æ12 clamping ring
4 – Set of connectors with Æ14 clamping ring

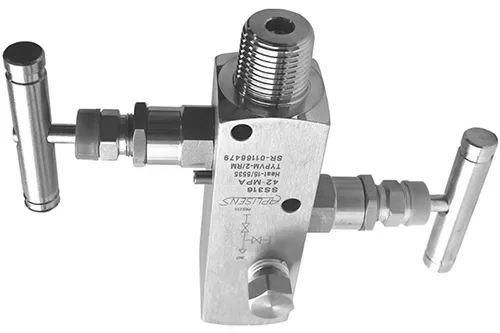

2-Valve Manifold VM-2
Material 316ss
Medium temperature, working pressure – according to the graph on page IV/ 3
Input 1/2NPT F, output 1/2NPT F, Teflon packing, vent port ¼ NPT F
Ordering code:
Valve VM-2-R/R/_
Valve VM-2-R/R/__
1 – Set of weldable stainless steel connectors (316ss)
2 – Set of weldable steel connectors (K11562)
3 – Set of connectors with Æ12 clamping ring
4 – Set of connectors with Æ14 clamping ring
Option .../NACE - NACE MR-01-75 comply
Ball valve
Material – H17N14M2 (316 ss)
Medium temperature - 80°C
Max pressure - 100 bar
Input, output process connection: 1/2NPT F
Ordering code: Valve VM-1/B
