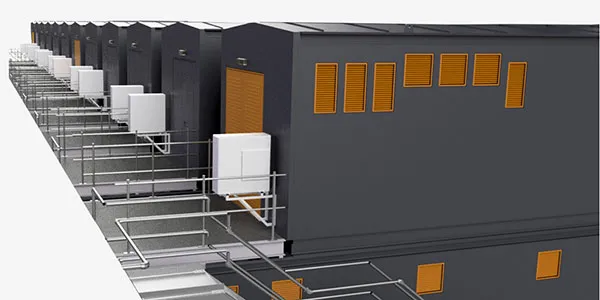

Containerised Plant Rooms:
Entire plant rooms containing combinations of MV Switchgear, Transformers, LV switchgear, standby generators and UPS systems built and tested at the factory.
The assembly work is undertaken in parallel with site preparation, saving time and protecting the sensitive electrical equipment from the rigours of the construction site.
Witness tested before despatch, these package solutions can be installed and commissioned quickly and efficiently.
Positioned on a roof or adjacent to a building, CPR’s free up internal space that would otherwise be occupied by plant equipment.
- Incorporating MV and LV systems.
- Segregated rooms.
- Multiple sections for ease of transport.
- Air conditioning or natural ventilation.
- Enclosures in sheet steel or GRP construction.
- Steel bases or open base.
- Cable access systems incorporated.
- UPS can be incorporated with separate battery rooms.
- Cable containment systems fitted
- Generator and UPS systems included
- Equipped with lighting, power, intruder and fire alarms
- Internal fire suppression systems fitted
Open Skid Frames:
AF Switchgear have designed and developed several open frame Skid mounted solutions incorporating Transformers, Switchgear, PDU’s and third-party UPS equipment along with all interconnecting bus bar and cabling.
All equipment is assembled at our HQ in Nottinghamshire, fully tested and delivered to site for rapid installation and final commissioning.
Skids can be manufactured with raised access floors for bottom entry bus bars and cabling or provided with support structures to facilitate top entry cable and bus bar systems
