Main LV Distribution Switchgear

We manufacture industry leading switchgear in all configurations and forms of separation in accordance with BS EN 61439-2. Standard designs are certified up to 6300A 120Ka RMS Sym for 1 sec, but equipment is available in ratings up to 15000A.

Our range of switchboards are all custom-built in a modular design with fully welded construction designed to any configuration to suite site requirements, all equipment is manufactured and tested in-house on site.

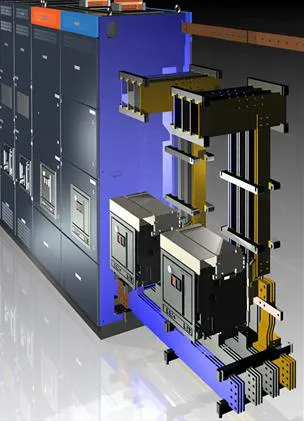

All aspects of the design are detailed in 2D and 3D CAD options.

Sub-distribution switchgear is available to the same specifications

Switchboard General Specification

• Standard and bespoke arrangements.

• Fully welded construction from 2mm thick mild steel.

• 2.5mm thick steel or galvanised & 5mm thick aluminium gland plates.

• All forms of segregation.

• Fully type tested assemblies to BE EN 61439-2.

• Ingress protection to IP31.

• Any colour from the RAL or BS ranges.

• Top or bottom cable/bus-duct entries.

• Front or rear cable access.

• Multiple sections.

• 100mm standard plinth.

Switchboard Features and Options

• All types of functional units including ACB’s, MCCB’s Fusewitches and MCB or fuseboards.

• Fixed, plug-in or withdrawable devices.

• Devices from all the main manufactures including ABB, Schneider, Socomec, Terasaki plus other manufacturers ranges.

• Comprehensive range of metering from the Autometers, Carlo Gavazzi, Janitza, Rayliegh, Schneider, Socomec plus other manufacturers ranges.

• Supply Authority CT Chambers integral to the footprint.

• Thermographic viewing facilities.

• Power mimic lines.

• Electronic surge protection.

• Double-rated neutral busbars.

• Ingress protection ratings up to IP65.

• Integrated protection.

• Equipment can incorporate a wide range of intelligent system controls and automation with conventional relay logic control or PLC systems.

• In-house testing with optional full load testing.
