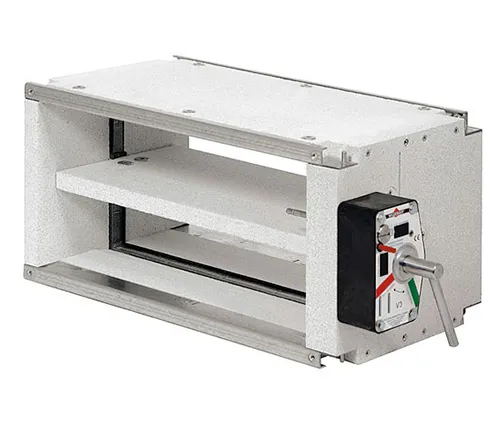

FK90K fire damper

FK90K fire damper

FK90K Fire Damper,

Series FK92K

  • maintenance-free

  • CE mark

  • Environmental Product Declaration (EPD)

  • hygiene certificate

  • Can be combined with the BS2 Wildeboer-Net

Product Information

Maintenance-free FK90K fire dampers, series FK92K, comply with the European product standard EN 15650, have the CE mark and are suitable for a fire resistance duration of 30/60/90 minutes. They are to be installed without minimum distance in wet and dry installation. This can be done both in and away from solid walls and ceilings as well as in and away from metal stud walls, as well as in firewalls and shaft walls with and without metal studs. The installation is possible with horizontal and vertical butterfly valve leaf axis. The Luftanströmrichtung can be done from each port side. With dimensions of 100 mm x 100 mm to 800 mm x 250 mm (W x H), FK90K fire dampers are particularly suitable for confined spaces.

The airtight housing with sealing class C according to EN 1751 as well as the exchangeable butterfly valve leaf are made of abrasion-resistant and corrosion-resistant calcium silicate. Other steel parts are galvanized or optionally available with an epoxy coating. The encapsulated tripping elements trigger temperature at 70 ° C or 95 ° C. The drive units are to be operated manually or electrically.

This product has an Environmental Product Declaration (EPD) (...) and is certified with a hygiene certificate (...) .
