Vibraplant Ltd.

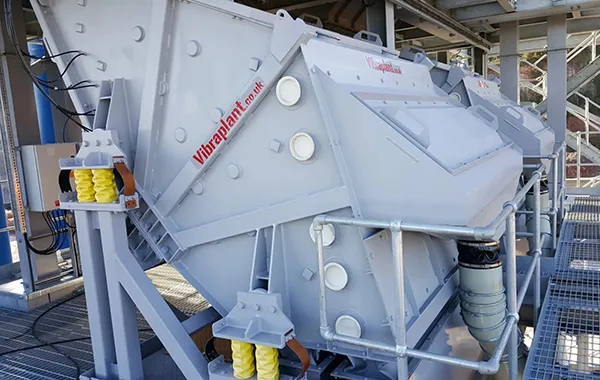

Sizer PSE Range

Sizer PSE Range

Probability screens are driven by two vibrators to produce a linear vibratory action which it combines with multiple steeply declined decks fitted with oversized mesh apertures creating a fast-moving product stream where the main volume of material flows vertically through the mesh and particles move freely. The probability screen principle maximises the use of free moving particles to improve the probability of particles passing through the mesh apertures therefore enabling high tonnages to be processed through units with footprints much smaller than conventional screens performing the same function.

STANDARD CONFIGURATIONS

• Open or dust-tight enclosed designs
• Supplied with support frame
• Feed/discharge configurations to suit site chute positions
• 0.5m, 1.0m, 1.5m, 2.0m and 3.0m available widths
• Up to 5-deck positions
• Steel covers
• Stainless steel meshes
• Painted to grey RAL7024, other colours available

TYPICAL APPLICATIONS

• Quarries
• Milling Companies
• Grain processing plants

AVAILABLE OPTIONS

• PVC covers
• Product resistant sacrificial liners including steel, Hardox, stainless steel, rubber, polymers etc.
• Pneumatic Mesh cleaning systems
• Automatic mesh tensioning systems
• Start/stop and variable speed drive vibrator control systems
• High temperature or ATEX applications
