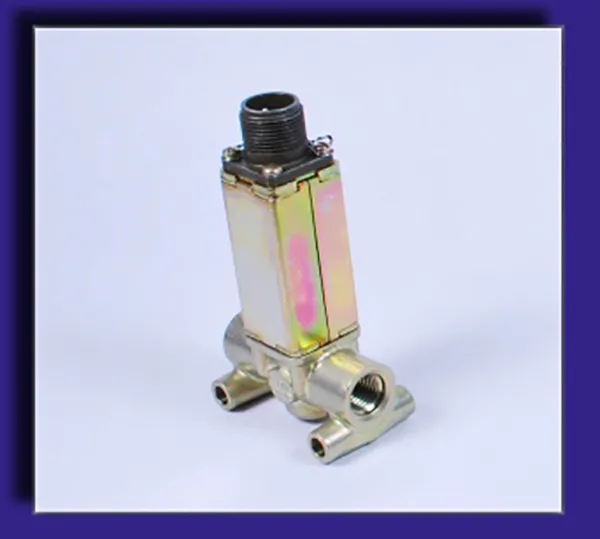

V5000 solenoid valves

V5000 solenoid valves

V5000 solenoid valves are designed for use with aviation fuels, non-corrosive gases, and non-aromatic hydraulic fluids. They are well-suited for the extreme vibration, temperature, and cycle life requirements found in the most severe aircraft operating conditions. Compact size and low weight allow these valves to be used in the tightest space available. Valcor’s proprietary floating seal technology provides tight shut-off, long service life, and the ability to handle particulates in the fluid stream without leaking. These valves are direct acting, do not require system pressure to operate, and are available in normally closed or normally open configuration.

APPLICATION

V5000 valves are typically used on aircraft APUs and engines. They are frequently manifolded together to control air for engine starting, de-icing systems and fuel system purge manifolds. They are particularly suitable for low pressure drop applications, and where particulate in the process fluid may be present.

FEATURES

• Maximum Operating Pressure: 1200 PSIG
• Proof Pressure: 1500 PSIG
• Burst Pressure: 3000 PSIG
• Leak Rate: Internal is 0.5 cc/hr liquid and 15 cc/min gas. External is 0 cc/min at 1500 PSIG
• Temperature: -65°F to +350°F
• Current: 0.68 amps at 30 VDC at 70°F; 18-30 VDC
• Electrical Connection: MS 3102A-10SL-4P side- mount standard
• Wetted Materials: Aluminum, CRES 303, 430F, 302, Carbon, Fluorosilicone
• 1/4” ports
• Weight: 0.34 lbs.
• 0.218” dia. clearance panel-mounting holes in body
