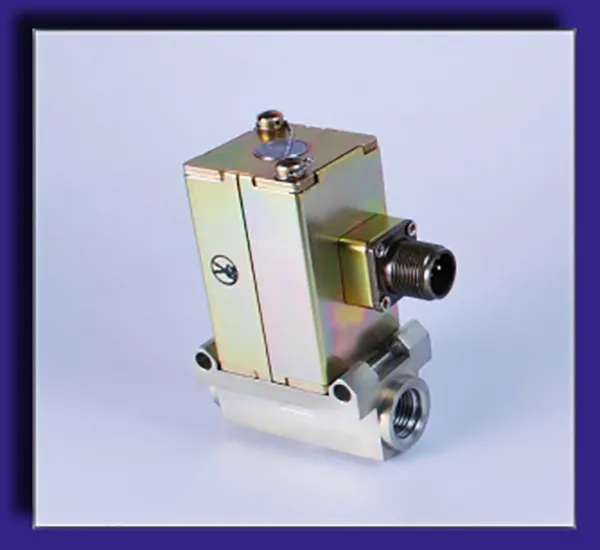

V4700 solenoid valves

V4700 solenoid valves

V4700 solenoid valves are designed for use with aviation fuels, non-corrosive gases, and non-aromatic hydraulic fluids. They are well-suited for the extreme vibration, temperature, and cycle life requirements found in the most severe aircraft operating conditions. Compact size and low weight allow these valves to be used in the tightest space available. Valcor’s proprietary floating seal technology provides tight shut-off, long service life, and the ability to handle particulates in the fluid stream without leaking. These valves are direct acting, do not require system pressure to operate, and are available in normally closed or normally open configuration.

APPLICATION

V4700 valves are widely used in fuel systems on aircraft APIs and engines. They are particularly suitable for low pressure drop applications, and where particulate in the process fluid may be present.

FEATURES

• Maximum Operating Pressure: 1200 PSIG
• Proof Pressure: 1500 PSIG
• Burst Pressure: 3000 PSIG
• Leak Rate: Internal is 0.5 cc/hr liquid, 15 cc/min gas. External is 0 cc/min at 1500 PSIG
• Temperature: -65°F to +350°F
• Current: 1.07 amps at 30 VDC at 70°F; 18-30 VDC
• Electrical Connection: MS 3102A-10SL-4P side- mount standard
• Wetted Materials: Aluminum, CRES 303, 430F, 302, Carbon, Fluorosilicone
• 3/8” ports
• Weight: 0.44 lbs.
• Self-cleaning, wear compensating, seal design
• Fully customizable to your application
