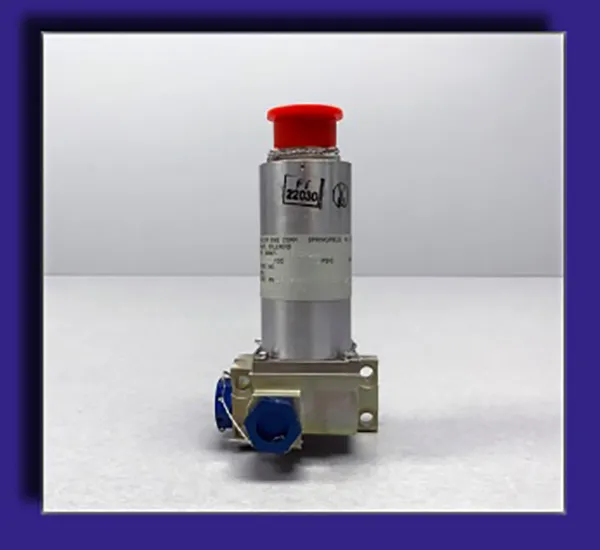

V19800 valves

V19800 valves

V19800 valves are designed for use with aviation fuels, non-corrosive gases, and non-aromatic hydraulic fluids. They are suited for the extreme vibration, temperature, and cycle life requirements found in severe aircraft operating conditions. Compact size and low weight allow these valves to be used in the tightest space available. Manifold mounting allows for easy maintenance, saves more space, and provides vibration-proof, leak-tight pressure boundary seals. They are direct acting, and are available in normally closed or normally open configuration.

APPLICATION

V19800 valves are typically used on aircraft APUs and engines. They are frequently manifolded together to control air for engine starting, de-icing systems and fuel system purge manifolds. They are used as firewall shut-off and pilots for larger valves on commercial and military aircraft.

FEATURES

• Maximum Operating Pressure: 1200 PSIG
• Proof Pressure: 1800 PSIG
• Burst Pressure: 2400 PSIG
• Flow Rate: ESEO up to 0.185”, Cd=0.65
• Leak Rate: Internal is 0.5 cc/hr liquid, 15 cc/min gas. External is 0 cc/min at 1500 PSIG
• Temperature: -65°F to +250°F
• Current: 1.3 amps at 30 VDC at 70°F; 18-30 VDC
• Electrical Connection: MS 3102A-10SL-4P side- mount standard
• Wetted Materials: Aluminum, CRES 303, 430F, 302, Carbon, Fluorosilicone
• Self-cleaning, wear compensating, seal design
• Fully customizable to your application
