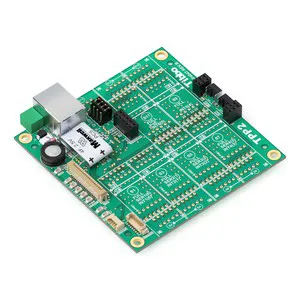

Size 2 Tibbo Project PCB (TPP2)

Size 2 Tibbo Project PCB is a Tibbo BASIC/C-programmable board belonging to the Tibbo Project System (TPS) line.

Offering 3 tiles for a total of 6 Tibbit module and 6 Tibbit connector sockets, the TPP2 can be used to create TPS configurations with up to four serial ports, up to 12 relays, or up to 24 control lines, such as opto-inputs, PWMs, or open-collector outputs.

This product can be used as a bare board or assembled into a size 2 Tibbo Project Box (TPB2). The board is also compatible with and can be assembled into the TPB2L, which features a 320x240 TFT LCD and a 4-button sensor keypad.

The TPP2 is perfect for systems with a medium number of I/O lines. Since the board can control a TFT display and a keypad, it is suitable for applications requiring a human-machine interface (HMI).The board is an ideal choice for automatic identification and data collection (AIDC) systems, as well as factory, shop, data center, hotel, and home safety, security, and automation applications.

The TPP2 is supported by our Online Configurator. The configurator allows defining custom TPS systems, which can then be ordered from our online store.

Features:

• 6 module + 6 connector sockets (for a total of 24 I/O lines)

• 10/100 Base-T Ethernet port with onboard magnetics and RJ45 jack

• Connector for the TFT display of the TPB2L

• Onboard buzzer

• 1MB flash disk for TiOS, application code, and file system

• 2048-byte EEPROM

• 5V power (use power Tibbits for other power arrangements)

Specifications:

• Powered by Tibbo OS (TiOS).

• 10/100BaseT auto-MDIX Ethernet port with RJ45/magnetics.

• Optional Wi-Fi interface (requires the GA1000 add-on module).

• Optional GPRS interface (requires Tibbit #47).

• 3 tiles with 24 general-purpose I/O lines:

• 6 sockets for Tibbit modules;

• 6 sockets for Tibbit connectors;

• 1 extra socket for Tibbit #37 (RF connector);

• 4 Tibbit module sockets have UART capability:

• Baudrates of up to 921,600bps;

• None/even/odd/mark/space parity modes;

• 7 or 8 bits/character;

• Full-duplex mode w. RTS/CTS, XON/XOFF flow control;

• Half-duplex mode with direction control;

• Encoding/decoding of Wiegand, clock/data streams.
