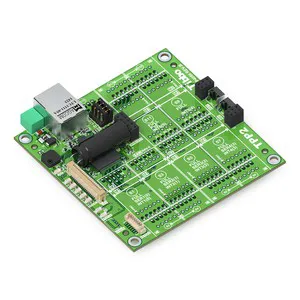

Size 2 Tibbo Project PCB, Gen 2

The TPP2(G2) is perfect for systems with a medium number of I/O lines. Since the board can control a TFT display and a keypad, it is suitable for applications requiring a human-machine interface (HMI).

The board is an improved version of our original TPP2 device. Compared to the TPP2, the new TPP2(G2) boasts a much higher performance, as well as larger flash and RAM. The TPP2 (G2) runs Tibbo OS (TiOS) and is programmable in Tibbo BASIC and Tibbo C.

Features:

• High-performance ARM CPU

• 6 module + 6 connector sockets (for a total of 24 I/O lines)

• 10/100 Base-T Ethernet port with onboard magnetics and RJ45 jack

• Optional Wi-Fi connectivity (with the GA1000 add-on)

• Optional GPRS connectivity

Specifications:

• 32-bit architecture

• Powered by Tibbo OS (TiOS).

• 10/100BaseT auto-MDIX Ethernet port with RJ45/magnetics

• Optional Wi-Fi interface (requires the GA1000 add-on module)

• Optional GPRS interface (requires Tibbit #47).

• 3 tiles with 24 general-purpose I/O lines:

• 6 sockets for Tibbit modules;

• 6 sockets for Tibbit connectors;

• 1 extra socket for Tibbit #37 (RF connector);

• 4 Tibbit module sockets have UART capability:

• Baudrates of up to 460,800bps;

• None*/even/odd/mark/space parity modes;

• 7* or 8 bits/character;
