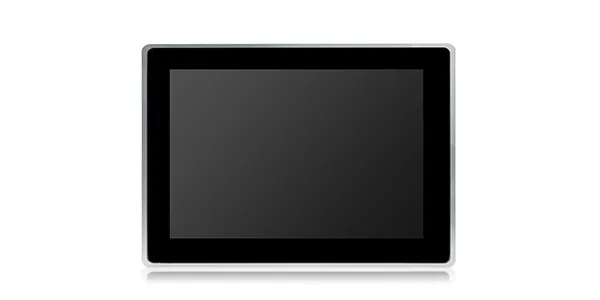

Vehicle Panel PC Widescreen VESA with M12

Projective Capacitive Touch Panel Automotive PC for Vehicle Applications

· M12 connectors · VESA mount · 16:9 Display with LED Backlight · Front with IP65 protection

The Protouch series from Syslogic includes a touch panel PC, which was developed specifically for use in vehicles. It is based on the vehicle computer Compact 81. All electronic components in the vehicle touch panel PC are firmly soldered. Moving parts are also deliberately avoided. Thanks to the passive cooling concept, error-prone fans are not needed. Screwable M12 connectors were used for the LAN interfaces and the power supply. All in all, this non-compromising design makes sure the vehicle computer continues to function reliably for the long term, even under the toughest of conditions. It is designed to withstand shock and vibration.

The touch vehicle panel PC widescreen comes with a 10.1-inch monitor with IP67 protection. The quad-core processes from Intel Atom’s Apollo Lake series (x5-E3940 or x7-3950) provide power reserves for demanding applications. Since vehicles, including trains, construction machines and automated guided vehicles (AGVs) are often used for several years, long-term availability is also a key criterion. Syslogic guarantees availability over several years. Upon request, the company even offers ‘form, fit and function’ for 20 years.

Technical data

System

10.1" Widescreen Display (16:9)
LED Backlight
Projected capacitive touch technology
Scratch and break resistant safety glass
IP65 Front
M12 connectors
Low power, high performance Intel® Atom™ E3900 processor (x5-E3930 1.80GHz, x5-E3940 1.80GHz, x7-E3950 2.00GHz)
RAM soldered on board up to 8GB
Socket for CFast Card
Ethernet
USB 3
RS232
Mini PCIe
optional RS422/485 and isolated CAN
Brightness control (Software)
