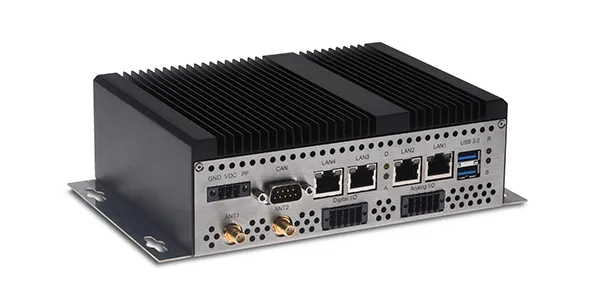

EmbeddedComputerOEMM81

Industrial Embedded PC system with digital and analog I/O interfaces and CAN

· Long term availability · Fanless and maintenance-free · IoT ready

The compact embedded computer OEM M-81 can be connected to a variety of communication levels. The integrated I/O interfaces enable direct control of actuators and sensors. This makes the Box industrial PC the perfect choice for traditional automation applications. Thanks to two standard CAN interfaces (optionally also available with six), the Box PC can also be used as a CAN bus controller. Accordingly, the industrial computer device is used for monitoring or controlling vehicles, such as automated guided vehicles (AGVs). The Box PC was designed according to meet EN 1175-1:1998+A1:2010, the standard for automated ground conveyors. Thanks to integrated Gigabit Ethernet interfaces and WiFi support, the Box PC can also be used as an IoT gateway or data logger.

Technical data of industrial embedded computer

System

Low power, high performance Intel Atom E3900 processor (Intel Atom x7-E3950, Intel Atom x5-E3940, Intel AtomTM x5-E3930)
DisplayPort 1.2 (up to 4k)
2x USB 2.0
2x USB 3.0
2x internal USB Version 2.0
4x Ethernet 10/100/1000 Mbit mit Intel I210 RS232 Serielle Schnittstelle
4x Analog In (+/-10VDC ), 0-30v, 4–20mA
4x Digital I/O (24VDC)
CAN (PEAK, SJA1000 kompatibel) isoliert
Mini PCIe socket mit miniSIM
