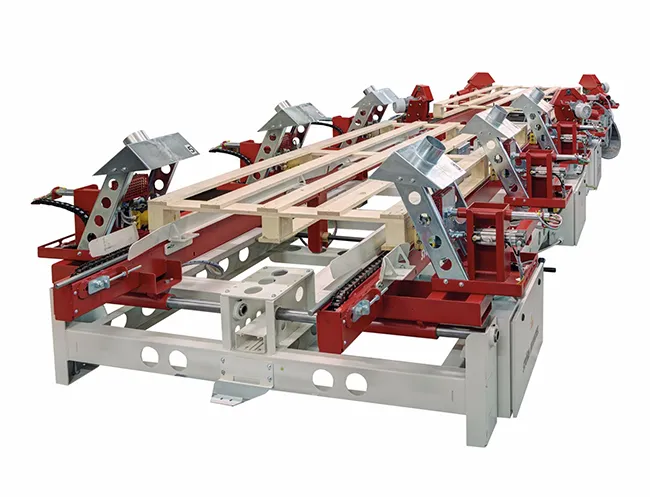

SMOP Pallet Machining Line
Description of device features:
The operator inserts the pallet into the input feed conveyor and acknowledges the start of the process, or the pallet enters the line fully automatically from the SMPA 500.1 ED sampling machine. Furthermore, it moves silently between operations without the need for operator operation until final output on the non-driven output conveyor. The individual aggregate motors are automatically started when the pallet passes, when they are finished, they turn off until the next pallet arrives. At the output roller conveyor, the operator performs final visual inspection and manual stacking. The control system allows you to deactivate individual line sections unless there is a need for specific operations on the pallet. Another option is to include a driven output conveyor with the use of a stacker.
Device Assembly:
1. Input roller conveyor
steel construction of machine with driven steel rollers
roller pitch approx. 250 mm (for a 600 mm minimum pallet)
driven system with manual pallet loading or fully automatic pallet input mode from the pickup machine.
2. Marking of pallets
pneumatic pallet pressure during marking
pneumatic shift of firing characters
electrical resistance heating templates - adjustable temperature
power consumption of the burning template of about 1.2 kW - total 6.8 kW
adjustable burner time switch from 3 to 20 s
flue outlet 150 mm diameter
3. Cutting pallet corners
4 pcs of circular saws
separate sliding motor units
suction neck 4 x 120 mm
power input 2,2 kW - total 8,8 kW
possibility of marking EUR pallets
4. Continuous milling aggregate
automatic pan feed
separate tilting motor units with copying milling equipment
mechanical setting of the copier unit
upper thrust wheels
back litter protection
power input 1.1 kW - total 6.6 kW
