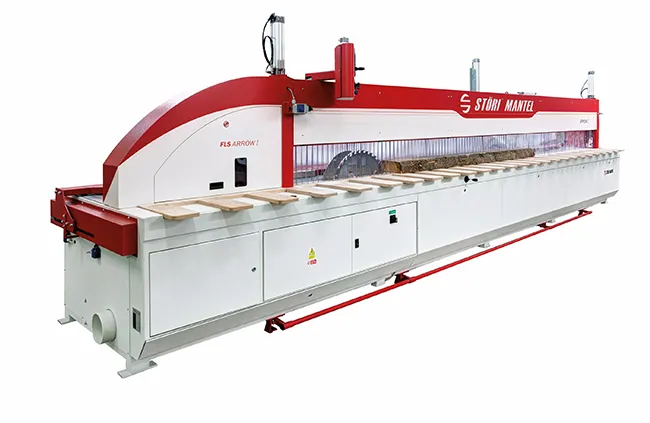

FLS Arrow I Single Disc Circular Saw
The advantage of the machine is the high speed and accuracy of individual cuts and a high degree of flexibility in the input and output dimensions of the processed material. FLS ARROW I is valued in sawmill production, furniture workshops, semi-finished products for windows, doors and stairs. He also works successfully in the production of large-scale materials, in carpentry and in the manufacture of wooden structures. The machine can also be used to divide non-wood-based materials, such as PUR panels, sandwich panels, plastic boards, aluminum boards, etc. Safety features that ensure the safety of the workpiece are a matter of course. The machine meets the strict safety requirements of the relevant EC regulations and directives.
FLS ARROW I - represents solidity and precision
The rugged and rigid welded frame of the machine is designed as a self-supporting steel structure with a central support and a high clear height, along with precise saw blade guidance, ensuring long service life.
Arrangement and saw principle
The cut material, freely seated on the work table, is cut longitudinally by the movable saw blade. At the end of the cut, the saw blade is slid beneath the work table of the saw and moves to the starting position. The rear longitudinal stop (ruler) also automatically moves the cut material to a new cut width value.
Advantages
Absolute setting - Allows automatic travel to the selected material width value
Chain settings - Automatic feed rate by the entered value (total width reduction+cutting joint)
Optimization system - automatic combinations of widths in the material according to the preset value operator (optimization of width to maximum yield)
Standard equipment of the machine:
•Continuously adjustable feed rate at 0 - 80 m / min. guarantees high cutting performance.
•Continuous feed rate control via the foot pedal or control on the machine panel.
•The control of the wheel lift ensures a clean cut and a high quality cut surface.
•Quickly switching the saw blade - Saw blade changes easily and safely -
•Laser - The saw is equipped with a laser, the beam of which features a cutting path on the material and allows for precise cutting adjustment.
Possible extension
•3000 mm (can be multiplied by stroke length)
•increase the cutting width to 3000 mm
•engine 15 kW
•metal rollers
•metal plate with 6 rolls
•chains for material handling in the machine table
•bridge rear stop (allows insertion of material from the back of the machine)
•cross table - base + transducer
•cross table - additional
