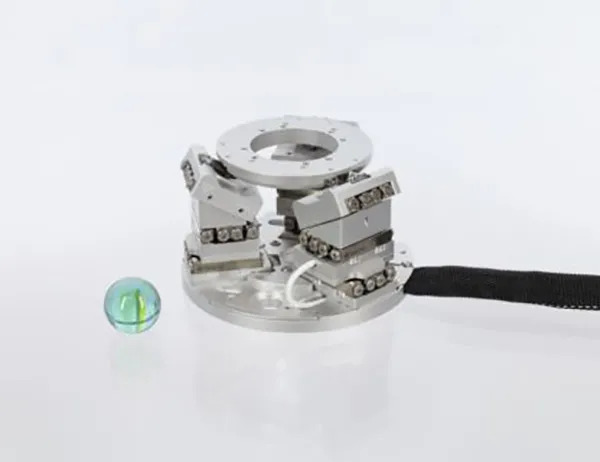

SMARPOD 70.42
Despite its small size the miniaturized SMARPOD 70.42 is able to handle payloads of up to 5 N.
The SMARPOD 70.42 is SmarAct’s smallest hexapod-like positioning system with a base plate diameter of only 70 mm. Despite its overall compactness it is a robust and precise system that can handle payloads of up to 5 N to be positioned with a centimeter travel range in X and Y.
It is also available in a high vacuum and ultra-high vacuum compatible version and can be built from fully non-magnetic materials.
Values for rotational travel are given for a Pivot point at the surface of the top plate.
The overall dimensions of the complete system may be larger for different poses. For more information, see the CAD model in the download area.
