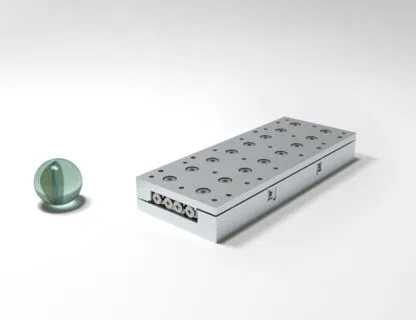

CLS-3282 - Linear Stage with EDU
The longest stage of the CLS-32 series offers a travel range of 51 mm while maintainig a footprint of only 32 x 82 mm. It is able to handle payloads of up to 30 N.
Linear stages of the CLS series were consistently designed for high availability applications in science and industry. They are equipped with SmarActs exchangeable drive units which guarantees easy access to the stage's core component, the piezo-drive. That makes servicing a very simple task. The drive unit can be exchanged without removing the complete device from the surrounding positioning setup. Additionally, their mounting hole pattern is perfectly matched to mount our rotation stages and goniometers.
Specifications
Download Spec Sheet
Mechanical
Travel [mm]
51
Blocking Force [N]
≥ 3.5
Max. Normal Force [N]
30
Max. Lift Force [N]
> 1.5
Dimensions [mm]
32 x 82 x 11
Weight [g]
87
Open-loop
Velocity [mm/s]
> 20
Open-Loop Resolution [nm]
Closed-Loop
Sensor Resolution MCS2 [nm]
1 (S), 4 (L)
Sensor Resolution (H)CU [nm]
50 (L)
Uni-Directional Repeatability (H)CU [nm]
± 1000 (L)
Options
Material Options
Aluminum base as standard; Titanium base (-TI)
Vacuum Options
HV (1E-6 mbar); UHV / UHVT (1E-11 mbar)
