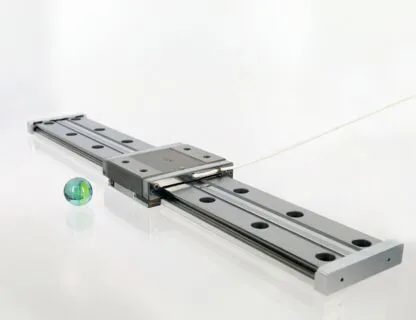

CLL42 - Large Travel Piezo Stage
The CLL42 offers a large platform to mount the payload and features long travel ranges as well as exchangeable drive units.
The CLL42 is equipped with SmarActs which guarantees easy access to the stage's core component, the piezo-drive. That makes servicing a very simple task. It is also available in a high vacuum version. The standard versions offer travels of 99, 179, 259, 379, 499 and 619 mm. Special lengths are of course available on request.
Specifications
Download Spec Sheet
Mechanical
Travel [mm]
160 ... 680
Blocking Force [N]
≥ 5
Max. Normal Force [N]
30
Max. Lift Force [N]
1.5
Dimensions [mm]
60 x 16 (open-loop carriage)
Weight [g]
Length-dependent
Open-loop
Velocity [mm/s]
> 15
Open-Loop Resolution MCS2 [nm]
Closed-Loop
Sensor Resolution MCS2 [nm]
1 (S), 4 (L)
Uni-Directional Repeatability MCS2 [nm]
± 100 (S)
Options
Material Options
Multiple carriages; Counterbores; Tapped holes (M4)
Mechanical Options
Vacuum Options
HV (1E-6 mbar); UHV (1E-11 mbar)
