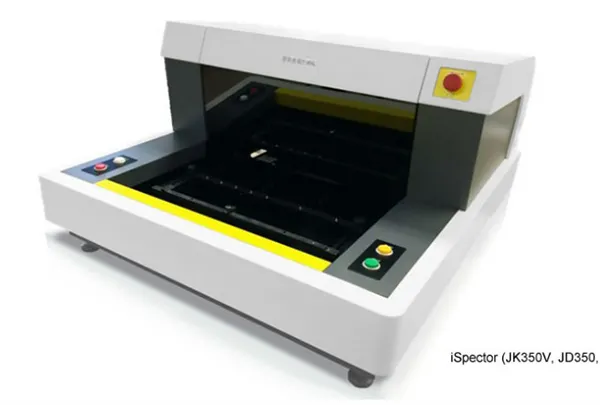

ISPECTOR JK ENTRY LEVEL AOI SYSTEMS

Powered by the JK inspection engine for quality inspection of solder jointsThe iSpector JK desktop AOI system is designed for customers for whom value for money is an absolute priority.iSpector JK is able to inspect component bodies and solder joints by use of RGB LED light sources from three different angles.It reliably inspects SMT component bodies for presence/absence, type, polarity, offset, text, colours etc. and components solder fillets for excessive, insufficient or no solder, shorts, lifted leads etc. Suitable for use in pre reflow, post reflow, post wave and post selective soldering, it can also be used for first article inspection.With its high resolution USB3 Vision interface top camera, defects become easily visible from the top. There 18.75µ per pixel lenses depending on the smallest component placed on the assembled PCB’s. The RGB from different angles create a detailed profile of solder menisci, which combine to a white like source for the surface of the components.iSpector JK utilizes the same powerful 22X software that is used in the flagship PowerSpector series. There is no compromise on the wide range of inspection algorithms and component libraries.
