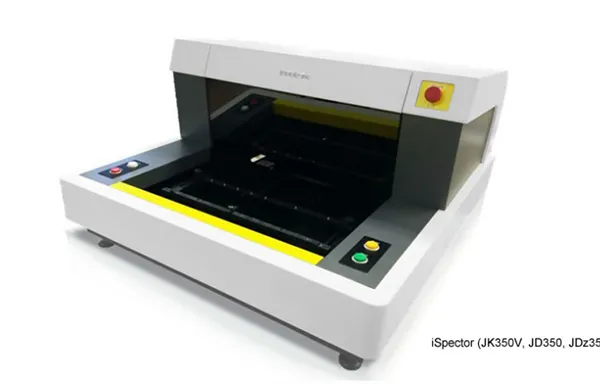

ISPECTOR JDZ ENTRY LEVEL AOI SYSTEMS

Mek iSpector JD & JDz – affordable AOI systems, available as desktop or inline.New entry-level AOI-systems, the Mek iSpector JD and iSpector JDz deliver the fastest return on investment for EMS customers that seek optical flexibility, easy programming & usage and the highest inspection performance guarantees.

What makes the JD and JDz AOI platforms different from other AOI-systems?The JD/JDz AOI systems feature a 5 megapixel camera. In combination with coaxial lighting and the 3D meniscus profile, the machines can inspect whether a PCB has good solder, no solder, lack of solder or excess solder for both SMT and THT solder joints.The JDz uses a Z-axis for maximum flexibility in THT and sandwiched SMD inspection. The Z-axis enables inspection of objects at different height levels such as sandwiched PCB’s, tall components or positional measurement of tall connector pins. The Z-Axis can move the complete inspection head equipped with a 5 megapixel camera, including the coaxial lighting system, resulting in a large Field of View of 36.0mm x 30.0mm and 15µ resolution.This flexibility, combined with fast software programming times, result in the perfect AOI system for customers with low volume, high mix production requirements looking for high-quality AOI with a low price tag.
