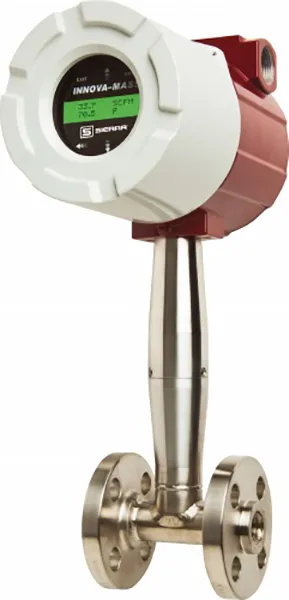

Mass Vortex Inline (Multivariable)

Vortex Flow Meters

InnovaMass® 240S Inline

• Highly reliable with no moving parts
• Ideal for saturated or superheated steam, gas, and liquid
• Flexibility with volumetric or multivariable versions
• Multivariable for five measurements in one device
• Energy (BTU) Monitoring for real-time monitoring of energy consumption
• No leaks with all welded gasket-free flow body
• Loop power option available

Overview

Sierra was the first to introduce multivariable mass vortex flow meters to the market in the late 1990s with the InnovaMass "S-Series" product line--the 240S and 241S. The InnovaMass 240S inline version is a true workhorse in applications ranging from large pipes and ducts, to high pressure and saturated or superheated steam. The InnovaMass 241S is manufactured as a volumetric only version or a multivariable version.

Product Benefits

• Mass & Volumetric flow monitoring of most gases, liquids and steam
• Measures five process variables with one process connection:
  • Mass flow rate
  • Volumetric flow rate
  • Temperature
  • Pressure
  • Fluid density
• Rugged, long-lasting design for the toughest applications
• Easy to Install, lots of field installation options
• Loop-powered design simplifies wiring and signal processing
• Fully field configurable field-configuration
• Energy (BTU) Monitoring for real-time monitoring of energy consumption; compute and output energy use
• Rangeable down to Reynold's number of 5000
• Field validation/configuration to assure

Specifications

• Measures steam, gases and liquids
• Pipe sizes from 0.5 to 8 inches (1.3 to 20.3 cm); up to 72 inches (2 m) available See 241S
• Flow range (30:1 Turndown):
  • Liquids:
    • 1 ft/s (0.3 m/s) Velocity Minimum
    • 30 ft/s (9.1 m/s) Velocity Maximum
  • Gas & Steam:
    • 10 ft/s (3.05 m/s) Velocity Minimum
    • 300 ft/s (91.5 m/s) Velocity Maximum
  • Accuracy:
    • Mass flow: +/- 1% of reading (liquids);
      +/- 1.5% of reading (gas & steam)
    • Volumetric: +/- 0.7% of reading (liquids);
      +/- 1% of reading (gas & steam)
• Repeatability:
  • Mass flow: +/- 0.2% of full scale
  • Volumetric: +/- 0.1% of full scale
  • Temperature: +/- 0.2°F (+/- 0.1°C)Pressure: +/- 0.05% of full scale
  • Density: +/- 0.1% of full scale
• Rangeability up to 100:1
  (accuracy maintained across entire range
• Process fluid temperature:
  • Standard: -40°F to 500°F (-40°C to 260°C)
  • High temperature (HT): up to 750°F (400°C)
  • Low temperature (CT): down to -330°F (-200°C)
• Ambient temperature:
  • Operating: -5°F to 140°F (-20° to 60°C)
  • Storage: -40°F to 150°F (-40° to 65°C) 0 to 98%
    relative humidity, noncondensing conditions
• Process pressure:
  • Standard: up to 1500 psia (100 bara)
  • High pressure to 5000 psig (345 barg)
• Power supply options:
  • 12 to 36 VDC, 100 mA (add 20 mA per output up to 60 mA)
  • 100 to 240 VAC, 50/60 Hz, 25 watts
• Output signals:
  • Three programmable 4 to 20 mA
  • User definable pulse output for totalized flow
• Response time is adjustable from 1 to 100 seconds
• 316 stainless steel construction (other materials available
• Hazardous-Area Location Enclosure (IP66) and NEMA 4X (IP65)
• Digital communications:
  • RS-485
  • Modbus RTU,
  • HART (with DD)
  • BACnet
  • Ethernet available for Modbus or BACnet
• Approvals:
  • FM
  • FMC
  • CSA
  • ATEX
  • IECEx
  • CE
