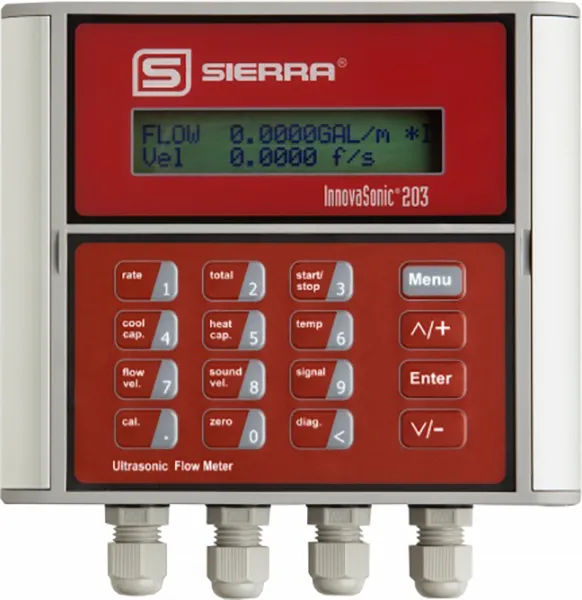

Ultrasonic Flow Meters InnovaSonic 203

Economical Clamp-On Ultrasonic Water Flow Meter for Accurate Results

InnovaSonic®203

• High performance at an affordable price
• Simply clamp-on outside of pipe for easy set up
• Save time with no pipe cutting or process shutdown
• For fast delivery, buy online, next-day shipment

Overview

The InnovaSonic 203 liquid flow meter is optimized for customers still looking for high performance, but needing a lower-cost, less feature-rich option for dedicated clamp-on ultrasonic metering. The 203 digital liquid flow meter optimizes the measurement of water as it flows in HVAC, irrigation and other liquid applications.

Common Applications:

• Cooling and heating fluid measurements
• Water and wastewater measurements
• Leak detection in piping systems
• Monitoring and controlling of HVAC systems
• Contactless product recognition
• Interface detection
• Automated process control

Product Benefits

• Designed for water and general liquid flow metering applications
• Tolerant of liquids with small amounts of air bubbles or suspended solids
• No moving parts to clog or fatigue like turbine meters
• Transducers clamped to outside of pipe
• Permanent or temporary installations
• Immune to the process compatibility concerns
• Install meter during plant operations
• No process shut-downs, no leakage risks
• Operational safety and robustness
• Ideal for large line sizes
• Low maintenance, no moving parts, robust construction
• High zero stability, nearly drift free
• Mounting kit included to lock transducer into place
• Modular electronics enabling field upgrades
• Large display with push buttons, user-friendly menu
• Transducers are matched pair and temperature compensated

Field validation/configuration to ensure operating performance

• Daily, monthly and yearly totalized flow rate
• Positive, negative and net flow totalizers

Specifications

• Accuracy +/- 1.0% of reading from 1.6 ft/s to 40 ft/s ( 0.49 m/s to 12 m/s)
• Repeatability +/- 0.3% of reading
• Wide turndown ratio
• Bi-directional flow range of 1.6 to 40 ft/s (0.49 to 12 m/s)
• Pipe sizes from 2 to 48 inches (50.8 mm to 1200 mm)
• Process pipe-wall temperature: 32°F to140°F (0°C to 60°C)
• Power supply:10 to 36 VDC at 1A
• Output signals:
• 4-20 mA
• Pulse (configurable)
• Relay (configurable)
• Digital communications: RS-232, RS-485, Modbus RTU
• Materials:
• Enclosure NEMA 4X (IP65), die-cast aluminum
• Transducers IP68 (Encapsulated)
