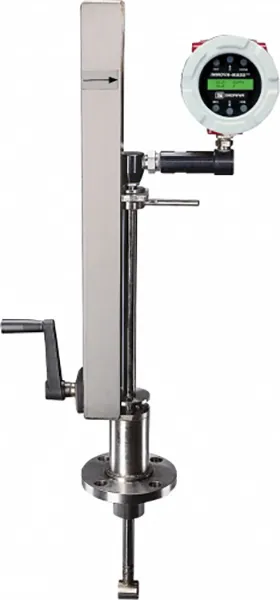

Vortex Flow Meters InnovaMass 241S Insertion

Vortex Flow Meters

InnovaMass® 241S Insertion

• Insertion probe for pipes and ducts up to 72 inches (2M); Optional hot tap - no process shutdown
• Ideal for saturated or superheated steam, gas, and liquid
• Volumetric flow rate or mass flow
• Multivariable for five measurements in one device
• Energy (BTU) Monitoring for real-time monitoring of energy consumption
• Highly reliable with no moving parts
• Loop power option available
• Rugged, long-lasting design for the industrial applications
• For fast delivery, buy online, next-day shipment

Overview

Sierra was the first to introduce multivariable mass vortex flow meters to the market in the late 1990s with the InnovaMass "S-Series" product line-the 240S and 241S. The InnovaMass 241S inline version is a true workhorse in applications ranging from large pipes and ducts, to high pressure and saturated or superheated steam. The InnovaMass 241S is manufactured as a volumetric only version or a multivariable version.

Product Benefits

• Mass or volumetric flow monitoring of gases, liquids or steam
• Ideal for pipes and ducts up to 72 inches (2M).
• Measures five process variables with one process connection
  • Mass flow rate
  • Volumetric flow rate
  • Temperature
  • Pressure
  • Fluid density
• Low-cost alternative to Coriolis meters for large pipes and ducts
• Easy single-point installation; hot tap and hot tap retractor available
• Sensors located behind bluff body are well protected from pressure shocks and water hammer
• Large LCD display and pushbutton interface; remote enclosure mounting available
• Display of simultaneous total flow rates and process diagnosis
• Loop-powered design simplifies wiring and signal processing
• Mass flow equations - real gas, ideal gas, and AGA-8 algorithms for natural gas
• Optional BTU measurement for steam and water
• Fully field configurable
• Rangeable down to Reynold's number of 5000
• Precision platinum RTD
• Complex density calculations performed without need for separate flow computer
• Field validation/configuration to assure operating performance
• Flow totalizer and alarms
• Energy (BTU) Monitoring for real-time monitoring of energy consumption; compute and output energy use

Specifications

• Fluids measured: steam, gases and liquids
• Up to 72 inches (2 m) available;
  Pipe sizes from 0.5 to 8 inches (1.3 to 20.3 cm); See 240S
• Accuracy:
  • Mass flow: +/- 1% of reading (liquids); +/- 2% of reading (gas & steam)
  • Volumetric: +/- 1.2% of reading (liquids); +/- 1.5% of reading (gas & steam)
• Repeatability:
  • Mass flow rate: +/- 0.2% of full scale
    Volumetric flow rate: +/- 0.1% of scale
    Temperature: +/- 0.2°F (+/- 0.1°C)
    Pressure: +/- 0.05% of full scale
    Density: +/- 0.1% of full scale
• Rangeability up to 100:1 (accuracy maintained across entire range)
• Process fluid temperature:
  • Standard: -40°F to 500°F (-40°C to 260°C)
  • High temperature (HT): up to 750°F (400°C)
• Ambient temperature:
  • Operating: -5°F to 140°F (-20° to 60°C)
    Storage: -40°F to 150°F (-40° to 65°C) 0 to 98% relative humidity, noncondensing conditions
• Process pressure:
  • Standard: up to 1500 psia (100 bara)
  • High pressure to 5000 psig (345 barg)
• Response time is adjustable from 1 to 100 seconds
• Power supply options:
  • 12 to 36 VDC, 100 mA (add 20 mA per output up to 60 mA)
  • 100 to 240 VAC, 50/60 Hz, 25 watts
  • Active loop, loop powered with 4 to 20ma output
• 316 stainless steel construction (other materials available)
• Output signals:
  • 3 programmable 4 to 20 mA
  • User definable pulse output for totalized flow
• Hazardous-Area Location Enclosure (IP66) and NEMA 4X (IP65)
• Digital communications: RS-485, Modbus RTU, HART (with DD), BACnet
• Ethernet available for Modbus and BACnet
• Approvals:
  • FM
  • FMC
  • CSA
  • ATEX
  • IECEx
  • CE
