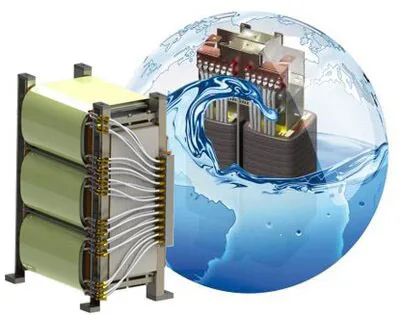

Water-cooled transformers

Water-cooled transformers

liquid cooled transformer as liquid cooled autotransformer or isolating transformer according IEC/DIN EN61558-2-13 and IEC/DIN EN61558-2-4

Applications

Liquid-cooled transformers of the Schmidbauer WKT series are excellently suited for water-cooled inverter technology. A potential-free water cooling simplifies water cooling in the entire system.

Description

The input voltage is 3x 400V at 50 / 60Hz and can be customized.

The number of cooling circuits, the prescribed water inlet pressures and water temperatures depend on the mode of operation and the characteristics of the load.
