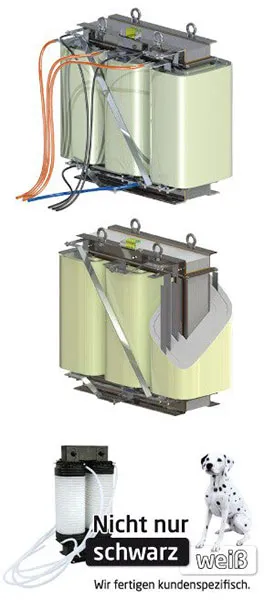

Aluminium Transformer

Aluminium Transformer

Assures through power and individuality

lighter, more efficient, reduced price

• high efficiency factor with standard materials:from 60kVA over 98,5%from 200kVA over 99,0%
• reduction of 45 % of the weight compare to standard transformers (lower freight costs)
• cost reduction because there is no extra copper addition
• power range to 2,5 MVA possible
• optimal use of the required materials
• available as autotransformers and isolating transformers
• several voltage level are available
• possible vector groups like Dyn5, Dyn11, YNyn0, Yd5, Dd0
• short-circuit voltage can be adjusted on demand
• class of protection: protective earthing or protective isolated
• degree of protection from IP00 to IP66 possible
• water cooled version
• a version with active air cooling is possible
