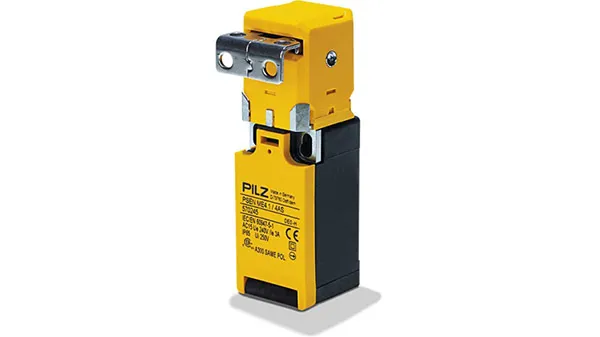

PSENmech Mechanical Safety Switches

PSENmech Mechanical Safety Switches

Safe monitoring of movable guards with the PSENmech

PSENmech mechanical safety switches are perfectly suited for the safe monitoring of a movable guard . If the protective devices are opened, the PSENmech safety switches are triggered. The dangerous movement of the machine is interrupted by the control unit from Pilz.

PSENmech safety switches prevent unintentional opening of the movable guard by means of a higher extraction force of the actuator. Thanks to their mechanically adapted actuator, they comply with EN ISO 14119 (protection against override).

Cost-effective solution for the monitoring of movable guards – your benefits

• Flexibility and speed of installation thanks to the different actuators and multiple activation devices
• Locking requires no additional accessories
• Possibility of connecting 230 V to the contacts
• Serial connection to an application is carried out directly in the sensor
• Built-in tamper-evident
• Long service life due to robust design and high mechanical load capacity
• Housing insensitive to dirt, dustproof and waterproof
• Complete safety solution combined with control units from Pilz

Characteristics of mechanical safety switches

• Position monitoring of movable guards according to EN 60947-5-1
• Suitable for applications up to PL e according to EN ISO 13849-1, SIL CL 3 according to EN/IEC 62061 (for higher requirements, 2 devices must be used)
• Protection index: IP65
• Direction of activation: 5 (PSEN me4), 2 (PSEN me3)
