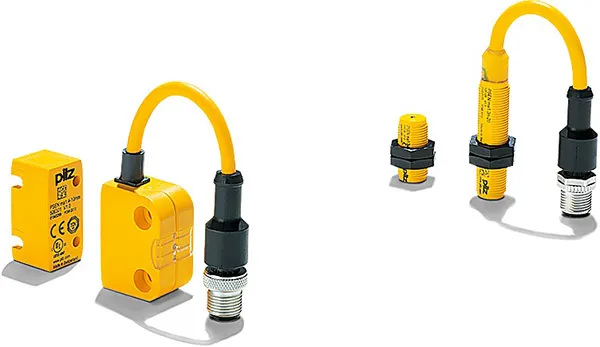

PSENmag safety sensors
PSENmag safety sensors
Maximum security at low cost
Non-contact magnetic safety sensors are used both for monitoring the position of movable guards according to EN 60947-5-3 and for position monitoring . With the PSENmag you get a cost-optimized system consisting of sensor and control system from Pilz, including certification.
The compact housing of the PSENmag saves you space during installation. Connectors and cables for all mounting and approach positions, as well as a safety switching distance of 3 or 8/10 mm, allow flexible installation . You benefit from a quick and user-friendly installation of the safety sensor!
New: The service life of PSENmag safety sensors demonstrated
The B10d value of safety sensors PSENmag in the variants PSEN ma1.4 and PSEN ma1.3 in conjunction with PNOZmulti 2 , PNOZelog or myPNOZ has been increased from 7 million to 50 million.
The B10d value according to ISO 13849-1 indicates the number of switching cycles after which a potentially dangerous failure occurs in 10% of the sensors used. PSENmags are therefore characterized by extremely low mechanical wear and a particularly long service life.
Benefit from the advantages of PSENmag!
- Profitability and long service life guaranteed – thanks to the absence of mechanical wear
- Space-saving and quick installation
- User-friendly diagnostics using additional signaling contact and LED
- Insensitive to shocks and vibrations
- Suitable for heavy soiling and high hygiene requirements
- Very high safety, even in explosive atmospheres
- Complete safety solution combined with control units from Pilz
Features of Magnetic Safety Sensors
- Magnetic active ingredient
- Designed for applications up to PL e according to EN ISO 13849-1 and up to SIL CL 3 according to EN IEC 62061
- Certification possible in areas with risk of explosion according to the ATEX directive
- Switching distances from 3 to 8 mm
- Suitable for serial connection
- Rectangular or rounded shape
- Degree of protection: IP65, IP67, IP6K9K
- With and without LEDs
- Also available in a fixed cable version
