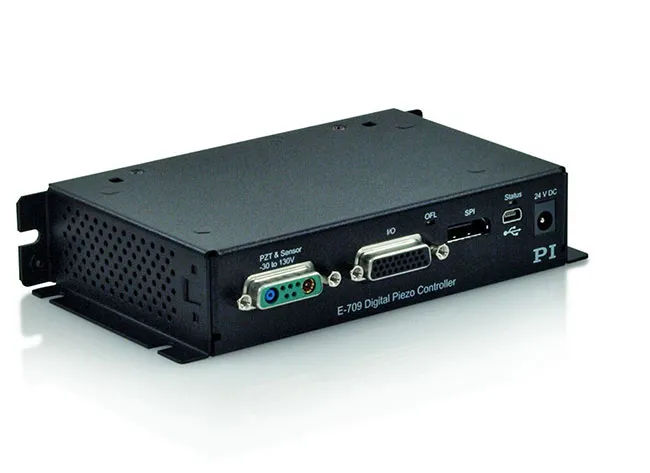

E-709 Compact and Cost-Optimized Digital Piezo Controller

Interfaces

USB, digital RS-232, fast serial interface with up to 25 MBit/s. Additional high-bandwidth analog control input / sensor input. Analog output, e.g., for external amplifiers.

Fields of application

• Multiphoton microscopy, confocal microscopy

• 3-D imaging

• Screening

• Autofocus systems

• Surface analysis

• Wafer inspection

Fast digital servo controller

Benchtop (.xRG) or OEM board (.xR). Voltage range -30 to 130 V.

User software and functions

PIMikroMove, PI General Command Set (GCS). Drivers for NI LabVIEW, shared libraries for Windows and Linux. Compatible with µManager, MetaMorph, MATLAB. Wave generator. Linearization. Data recorder. Autozero. Trigger I/O. Software-configurable parameters.
