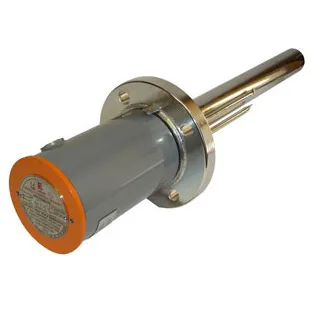

Immersion heater type FP-C

The "FP-C" Explosion-Proof Flange Heaters range with interchangeable ceramic cartridge heaters provides a solution to heat oil or other media with a prescribed low surface load. Due to the special heating element / cartridge arrangement, eg for inspection purposes, the heating cartridge can be removed from the system without having to empty the tank. The standard radiator consists of heating cartridges, which are installed in a mounting flange. The electrical connection is made in a robust Ex d connection housing.

Specifications

• certified according to ATEX and IECEx guidelines
• can also be supplied with an electrical connection housing at a distance to the mounting flange (cooling section), z. B. at high process temperatures
• Almost every standard flange within the design possibilities can be used
• the installation is basically horizontal, vertical installation on request
• Lacquered connection housing made of steel (or stainless steel 316) in protection class IP66
• can be used at ambient temperatures of -50 ° C to + 60 ° C
• optionally with built-in temperature sensors
