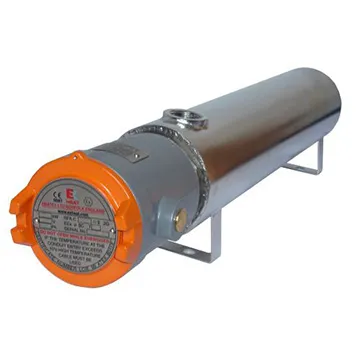

Flow heater type FP-MLH & FP-MLHX

The series of explosion-proof mini line heaters consists of a screw-in or flange heater installed in a heat-insulated flow tube. These devices are used for efficient heating of flowing media (liquids, air or gases). The devices are completely certified according to the ATEX directive and may be used in explosion-protected zones 1 & 2 and the gas group IIC.

Specifications

• certified according to ATEX directives 94/9 / EC
• lightweight connection housing made of cast aluminum, protection class IP66
• Optionally, a temperature sensor for detecting the process temperature and an externally adjustable sensor can be supplied
• Standard steel or 316 stainless steel flow tube
• As standard, the heating elements are made of high-quality material Incoloy or stainless steel with water heating, or exchangeable ceramic heating cartridges with oil heating
• can be used at ambient temperatures of -40 to + 40 ° C
• Operating pressure 10 bar g (145 psig)
• the installation position is basically horizontal, vertical installation on request
