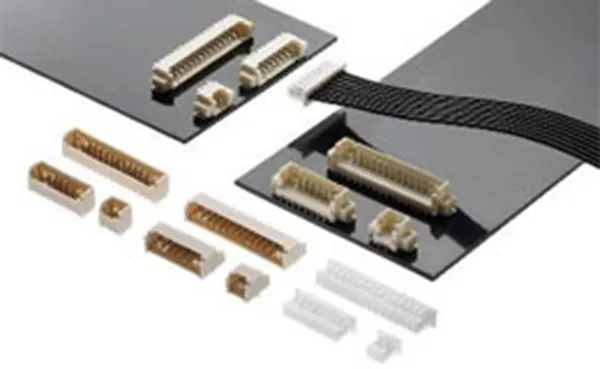

PicoBlade Connector System
Customers need improved reliability and durability as rugged applications can be subject to shock, vibration or rough handling that can dislodge the terminals and cause signal interference. The PicoBlade Connector System features a two-point-contact design for a reliable electrical connection and a frictional lock for secure mating retention; the Gold plating provides superior reliability and durability.
Existing users of PicoBlade Wire-to-Board Connectors want higher electrical conductivity than existing Tin-plated versions can support. Molex introduced PicoBladeGoldplated W-to-B Connectors with through-hole and SMT headers in a right-angle orientation.
Customers need compactness without sacrificing overall quality in standard W-to-B/W-to-W connectors. Molex offers 1.25mm pitch connectors with a reliable two-point contact design and friction lock.
Customers require high-volume vacuum pick-and-place assembly for SMT headers using industry-standard pickup nozzles. Vacuum caps on the top of the header and a flat area for pick-and-place assembly purposes enable easy automatic board placement.
Multiple purchases and engineering steps can increase costs, take additional time, and add complexity to the procurement process.PicoBlade Connectors are available in 2 to 17 circuits, Tin- and Gold-plated versions with through-hole and SMT mounting, and vertical and right-angle orientations.
Compact and small 1.25mm pitch W-to-W/W-to-B connectors
Provides space savings
Flash and 0.38μm Gold-plated versions
Offers superior reliability and durability in harsh environmental conditions
W-to-B and W-to-W solution with through-hole and SMT headers in straight and right-angle orientations
Offers design flexibility
Two-point contact design
Assures a reliable electrical connection under lowcurrent, low-voltage and high-vibration conditions
Friction lock
Provides secure mating retention
Optional vacuum caps for SMT vertical headers
Allows high-volume placement using industry-standard pick up nozzles *Tin plated only
