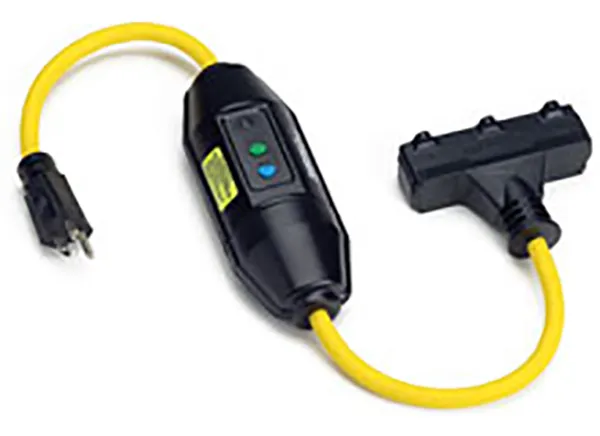

Ground Fault Circuit Interrupter GFCI
Woodhead GFCI products are designed to prevent the occurrences of serious injury or death associated with electrical accidents in construction sites and other rugged industrial settings. Portable GFCI products are equipped with an open-neutral relay that meets OSHA requirements, safeguarding workers and employees against ground faults.
Product options include manual or automatic reset, molded, field-serviceable or flying-lead ends, as well as in-line, right-angle or outlet boxes. Watertite and industrial-duty-rated GFCI outlet boxes constructed of long-lasting NEĊTEX rubber are engineered specifically for use in oil refineries, shipyards and other work sites where dampness, moisture and dust are present, including areas where frequent hose-down is required.
Industrial equipment often needs its own electrical outlet, but if the equipment is located in the middle of the plant, running a cord across the floor could be hazardous. Super-Safeway GFCI Cable Drops feature a primary cord that is long enough for an overhead configuration. Therefore, the cord can be installed off the floor, in a more convenient and safe location, along the ceiling.
FEATURES AND BENEFITS
Safeway/Super-Safeway GFCI
Plug-connector type, flying lead, box-style products available
Provides customer a cost benefit
Available in 15.0, 20.0 or 30.0A, 120 or 240V
Provides customer convenience with several electrical options
Weatherproof, NEMA 3R, 4X and 6P ratings available
Provides a GFCI product for any application
Super-Safeway GFCI Cable Drops
GCFI is closer to the application rather than the source
Facilitates cable-drop applications with accessible control buttons and reduced nuisance tripping
Wide-ranging regulatory compliance
UL listed, CSA certified
Accessible GFCI control, trip indication, test and reset functions are all local to the point of use
Provides users with immediate access to test/reset functions
Improves safety
Multiple seal plug/connector interface
Keeps out contaminants
Resists vapor and water from high-pressure washdowns (up to 1000 psi)
NSF-certified material
Antimicrobial
IP69K rated
