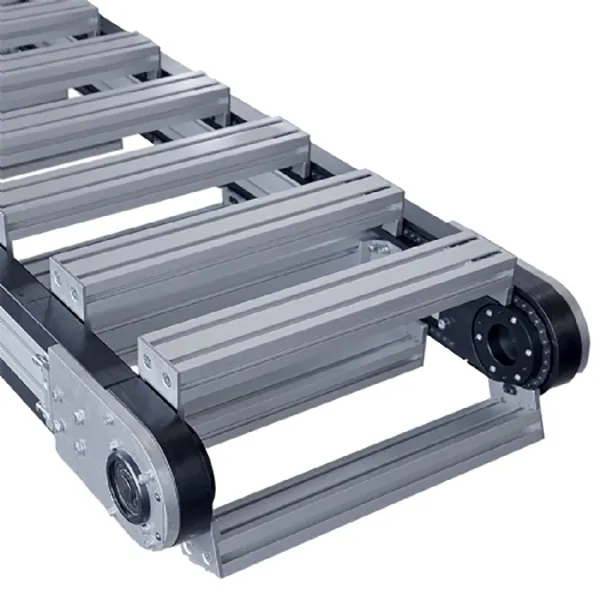

Indexing Chain Conveyor TKU 2040

Indexing Chain Conveyor TKU 2040

The TKU 2040 is a fixtured indexing chain conveyor, which features an attachment chain. Pallets or fixtures (often V-blocks) are mounted to the chain, providing a workpiece holder for the product. The TKU 2040 is specifically designed for defined, position-based (cycled or indexed) operation.

This conveyor is available in a fixed or adjustable width. The adjustable width model allows for products of varying lengths or widths to be carried on a single conveyor.

Indexing Chain Conveyor Features:

• Pallet Spacing: per application, in 1" incremental spacing Pallets or Fixtures: Supplied and installed by mk Width: 195 mm to 1,500 mm - Adjustable Width Available as an Option Length: 1,000 mm to 8,000 mm Load: Up to 1,000 lbs. Speed: Up to 60 fpm Repeatability: ± 1 mm possible Voltage: All standard US, Mexico and Canadian voltages Accessories: Compatible with all mk side rails and supports

Technical Specifications for Indexing Chain Conveyor

• Constructed using our mk 2040.02 structural profile
• 80 mm deep anodized aluminum frame Dual t-slot along both sides of the frame
•  UHMW-PE wear surfaces  Maintenance free dual-sealed ball bearings Fixed and adjustable width options
• Adjustable width is offered with manual or semi-automatic adjustment features Adjustable width requires the use of v-blocks, not pallets
•  Direct drive for low backlash operation Conveyor return can be outfitted for various accessories including encoders Optional lubrication station to reduce maintenance A variety of protective guards
