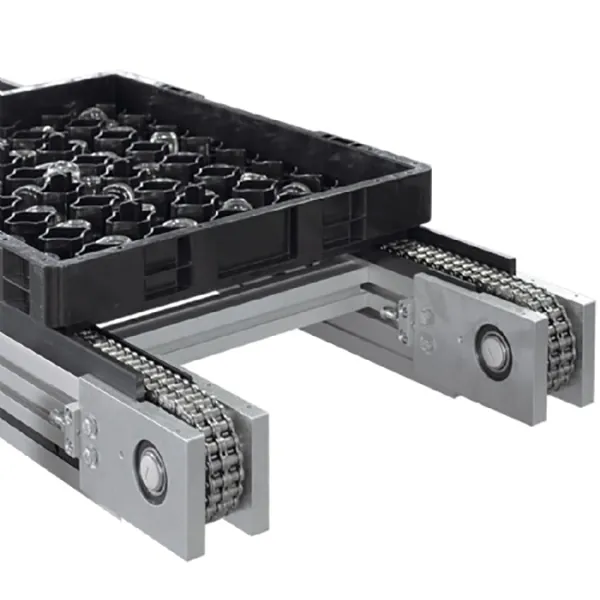

Chain conveyor KTF-P 2010

Chain conveyor KTF-P 2010

mk's roller chain conveyor, KTF-P 2010, features a compact design while offering a high total load capacity over long runs.

This roller chain conveyor system is bi-directional, making the KTF-P 2010 an excellent choice for conveying solutions involving workpieces and other pallets, including those in the automotive, manufacturing, and robotics industries, to name a few).

Roller Chain Conveyor Features:

• Frame: 100 mm deep profile, 50 mm wide Pulley: 1/2" pitch, 22 tooth Width: Each lane is 50 mm wide, outside frame width is nearly unlimited, single or multiple lanes Length: 500 mm to 15,000 mm Load: Up 2,200 lbs. Speed: Up to 200 fpm
• Constant or Variable speed options
• Voltage: All standard US, Mexico and Canadian voltages Chain: 1/2" pitch chain, single or duplex Accessories: Compatible with all mk side rails and support

Technical Specifications for Chain Conveyors

• Constructed using our mk 2010 series profile
• 100 mm tall anodized aluminum frame Dual t-slot down the length of the frame, per side Bottom t-slot
•  Our 2010 Profile allows for the chain to return within the frame
• Ability to mount conveyor directly on table top Safer design
•  Compatible with all mk 50 system profiles and components and most mk 40 system profiles and components UHMW-PE chain track (wear strip), 5 mm thick
• Chain tracks are snapped on for easy replacement With optional integrated side rails
•  Single lane and multi-lane configurations Maintenance free dual-sealed ball bearings A removable t-slot cover allows for easy access to chain return Available in head and mid-drive configurations All conveyor lengths are per your requirements – no preset lengths to choose from Quick chain replacement Conveyor can operate in either direction – bi-directional Can be modified to accept an attachment chain Large selection of conveyor accessories – stands and side rails to name a few
