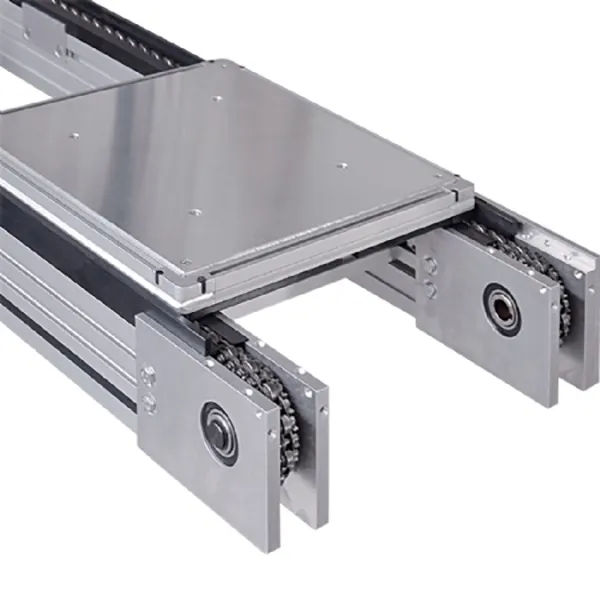

Chain conveyor SRF-P 2010

Chain conveyor SRF-P 2010

Low back pressure accumulating roller chain conveyor, SRF-P 2010, is designed for medium to heavy duty pallet-handling conveyor systems. The free running load rollers, within the chain, ensure quiet operation; including during product accumulation.

Accumulating Roller Chain Conveyor Features:

• Frame: 100 mm deep profile, 50 mm wide Pulley: 1/2" pitch Width: Each lane is 50 mm wide, outside frame width is nearly unlimited, single or multiple lanes Length: 500 mm to 20,000 mm Load: Up 250 lbs. per pallet and 2,000 lbs. per drive Speed: Up to 200 fpm (speeds up to 80 fpm are preferred for VersaMove)
• Constant or Variable speed options
•  Voltage: All standard US, Mexico and Canadian voltages Chain: 1/2" pitch accumulating roller chain
• Plastic or steel rollers In-line or staggered rollers
•  Accessories: Compatible with all mk side rails and support

Technical Specifications for Accumulating Roller Chain Conveyor

• Constructed using our mk 2010 series structural profile
• 100 mm tall anodized aluminum frame Dual t-slots along the length of the frame, each side T-slot running along the bottom of the frame
• T-slots along the length of the conveyor for ease of mounting stands, side rails, and custom accessories
•  The chain returns within the frame profile
• This provides a safer design
•  Chain is available with steel or plastic rollers, as well as the option of in-line or staggered rollers A removable slot cover allows access to chain for cleaning and maintenance UHMW-PE slider bed, 6 mm thick – guided for added belt tracking Single lane and multi-lane Dual sealed bearings for low maintenance design Positively driven via sprocket Maintenance free dual-sealed ball bearings Compatible with all mk 50 system profiles and components and most mk 40 system profiles and components Available in head and center-drive drive configurations
