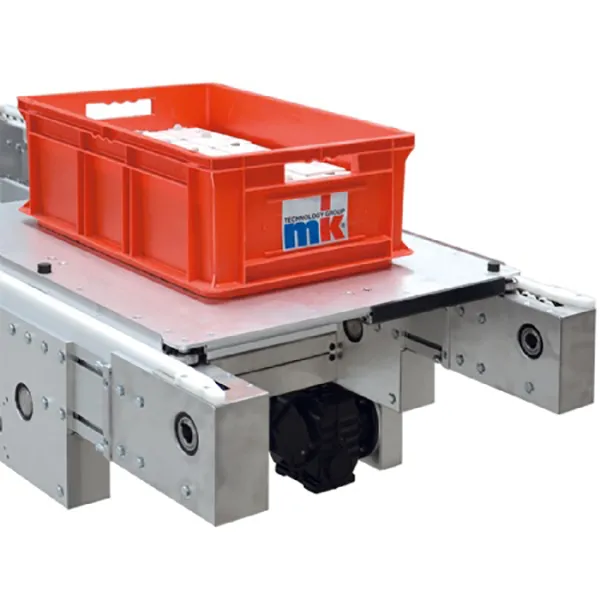

Chain conveyor SRF-P 2012

Chain conveyor SRF-P 2012

The heavy duty accumulating roller chain conveyor, SRF-P 2012, is designed for the use with heavy-duty pallet-handling systems or for conveying large and bulky products. The free running rollers, within the chain, ensure quiet operation and a smooth accumulating surface.

SRF-P 2012 Heavy Duty Accumulating Roller Chain Conveyor Features:

• Frame: 135 mm deep profile, 60 mm wide Pulley: 3/4" pitch Width: Each lane is 60 mm wide, outside frame width is nearly unlimited, single or multiple lanes Length: 500 mm to 20,000 mm Load: Up to 800 lbs. per pallet, 3,500 lbs. per drive Speed: Up to 200 fpm (speeds up to 80 fpm are preferred for VersaMove)
• Constant or Variable speed options
•  Voltage: All standard US, Mexico and Canadian voltages Chain: 3/4" pitch accumulating roller chain
• Plastic or steel rollers In-line or staggered rollers
•  Accessories: Compatible with all mk side rails and support

Technical Specifications for Heavy-Duty Accumulating Roller Chain Conveyor

• Constructed using our mk 2012 series structural profile
• 135 mm tall anodized aluminum frame Dual t-slots along the length of the frame, each side Bottom t-slot
• T-slots along the length of the conveyor for ease of mounting stands, side rails, and custom accessories
•  The chain returns within the frame profile
• This provides a safer design
•  Available with steel or plastic rollers in the chain UHMW-PE slider bed, 6 mm thick – guided for added belt tracking Dual sealed bearings for low maintenance design Positively driven via sprocket Maintenance free dual-sealed ball bearings Compatible with all mk 50 system profiles and components and most mk 40 system profiles and components
