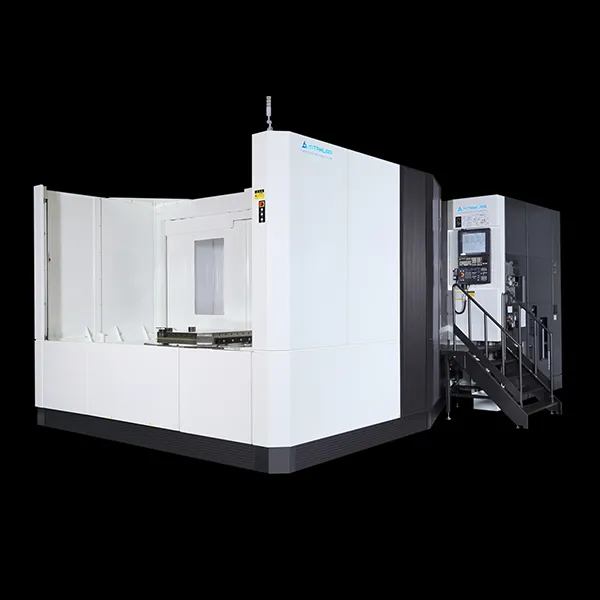

Mycenter HX1000G_HX1250G Heavy Duty Horizontal Machining Center
Kitamura Horizontal Machining Centers
Kitamura’s Horizontal Machining Centers offer the benefits of extra-large work envelopes coupled with outstanding accuracies. From solid Meehanite cast construction to patented twin ballscrew and dual feedback technology offering blazing 2,362ipm rapid rates on solid boxways, to the sheer power and speed of our geared head spindles, Kitamura Horizontal Machining Centers offer you long machine tool life, continuous accuracy and the reliability necessary to get the job done. Thinking that now may be the time to automate? Our HMC's provide the field expandability and flexibility necessary to grow your business as your needs change. Need additional tools, more than 2 pallets or 5th axis machining capabilities added to your existing machine in the field, on the spot? We've got you covered. Our horizontal HXiG-Series is the culmination of excellence in the manufacture of high-performance machine tools that spans over 86 years.
Mycenter-HX1000G/HX1250G
Heavy Duty Horizontal Machining Center
Specifications
|
Table Size:
|
39.37” x 39.37” (1,000 x 1,000mm)
49.2" x 49.2" (1,250 x 1,250mm) *HX1250G
|
|
Travel (X, Y, Z):
|
80.31” x 51.97” x 53.94”
(2,040 x 1,320 x 1,370mm)
|
|
Spindle Taper:
|
NST No. 50
|
|
Spindle Speed:
|
20~8,000rpm (35~12,000rpm Opt.) – Gear Drive, 4-Step
|
|
Tool Storage Capacity:
|
150 Pcs. (200 Opt.)
|
|
Tool Change Time
(T-T/C-C):
|
3.0 sec. /7.0 sec.
|
|
Rapid Feed (X,Y,Z)
|
1417ipm (36m/min)
|
|
Power Requirement:
|
80KVA
|
Features
• Solid box way design combined with the rigidity of high grade meehanite casting
• Positioning accuracy: ±0.000078”/full stroke, Repeatability: ±0.000039”
• Linear scale feedback on X, Y, Z axes
• Full 4th axis rotary table with high resolution scale
• Maximum workpiece size 80.71” dia x 61.02” height. Table load capacity of 6,600Lbs +
• Patented twin ballscrew/twin servo motor driven axis drive system
• Flexibility with the ability to add a 5th axis in the field
