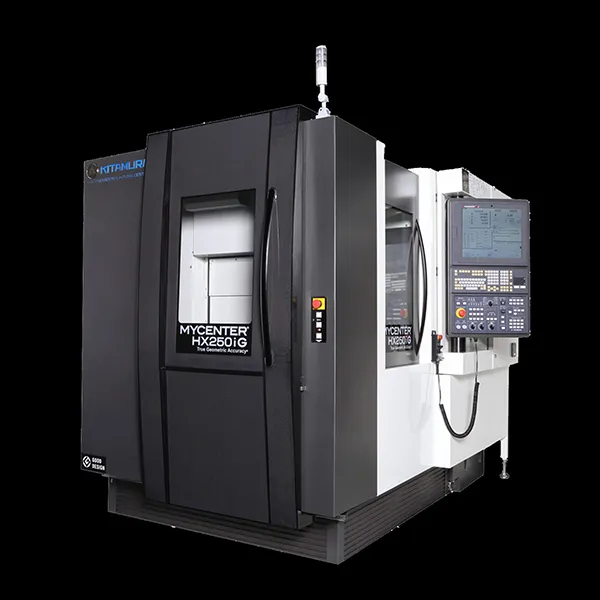

MycenterHX250iG Ultra Compact Horizontal Machining Center
Kitamura Horizontal Machining Centers
Kitamura’s Horizontal Machining Centers offer the benefits of extra-large work envelopes coupled with outstanding accuracies. From solid Meehanite cast construction to patented twin ballscrew and dual feedback technology offering blazing 2,362ipm rapid rates on solid boxways, to the sheer power and speed of our geared head spindles, Kitamura Horizontal Machining Centers offer you long machine tool life, continuous accuracy and the reliability necessary to get the job done. Thinking that now may be the time to automate? Our HMC's provide the field expandability and flexibility necessary to grow your business as your needs change. Need additional tools, more than 2 pallets or 5th axis machining capabilities added to your existing machine in the field, on the spot? We've got you covered. Our horizontal HXiG-Series is the culmination of excellence in the manufacture of high-performance machine tools that spans over 86 years.
Mycenter-HX250iG
Ultra Compact Horizontal Machining Center
Specifications
|
Table Size:
|
10” x 10” (254 x 254mm)
|
|
Travel (X, Y, Z):
|
12” x 12” x 13”
(305 x 305 x 330mm)
|
|
Spindle Taper:
|
NST No. 30
|
|
Spindle Speed:
|
150~15,000rpm **30,000 Option
|
|
Tool Storage Capacity:
|
40 Pcs.- Expandable in the Field to 102 Tools!
|
|
Tool Change Time
(T-T/C-C):
|
1.2 Sec. /2.8 Sec.
|
|
Rapid Feed (X,Y,Z)
Rapid Feed (B)
|
2,362ipm (60m/min)
108,000deg./min. (300rpm)
|
|
Power Requirement:
|
30KVA
|
Features
• Drastically reduces set-up times for small, detailed, highly accurate complex parts
• Amazingly small footprint saves on valuable floor space
• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
• Ultra high speed rapid feed rates of 2,362ipm
• 2-Station APC with High Speed 4th axis rotary table, DD Motor Driven 108,000deg/min rapids
• High power, high-speed processing Arumatik-Mi CNC with 67 million pulse coder technology
• Powerful 15,000rpm, dual contact spindle - Optional 30,000rpm HSK-E40 spindle Available
• Optional 10-Station Automatic Pallet Changer and 102 Tool Upgrade available in the field
