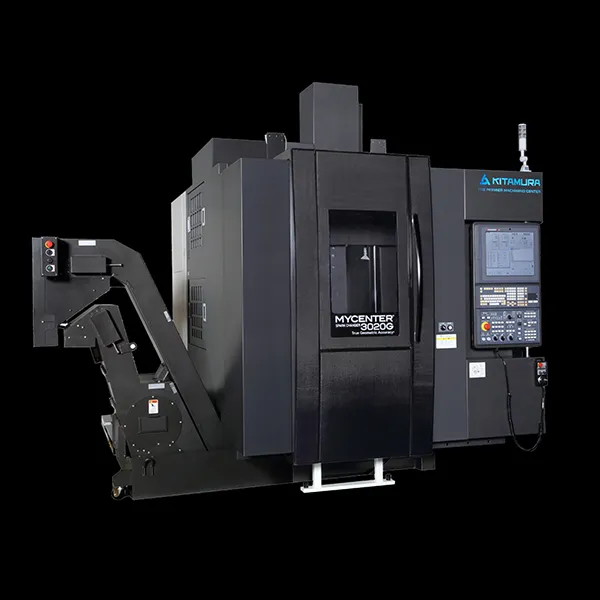

Mycenter3020G 15k Sparkchanger Vertical Machining Center
Kitamura Vertical Machining Centers
From small to large Kitamura offers a wide variety of Vertical Machining Center configurations to handle your most demanding cutting conditions. An emphasis on rigidity in construction and ultra-high precision let customers supply high value-added services to their clients, entering new markets, expanding business and producing extreme tolerance work. High speed spindles and optional factory installed pallet changers increase spindle utilization and help to create a multi-tasking machining environment that optimizes up-time.
Mycenter-3020G, 15k "Sparkchanger"
Vertical Machining Center
Specifications
|
Table Size:
|
19.7” x 33.9” (500 x 860mm)
|
|
Travel (X, Y, Z):
|
30” x 20.1” x 20.1”
(762 x 510 x 510mm)
|
|
Spindle Taper:
|
NST No. 40
|
|
Spindle Speed:
|
40~15,000rpm
|
|
Tool Storage Capacity:
|
30Pcs.
|
|
Tool Change Time (T-T/C-C):
|
2.2 Sec. /4.4 Sec.
|
|
Rapid Feed (X, Y, Z):
|
1,969ipm (50m/min) X/Y x 1,417ipm (36m/min) Z
|
|
Power Requirement:
|
30KVA
|
Features
• 180 degree 2-Station rotating pallet changer for high production requirements
• Ideal for heavy duty cutting of molds to the high-speed accuracy cutting for high precision parts
• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
• Rigid Meehanite cast iron construction with solid box ways (X & Y Axes)
• Versatile 30HP AC, 15,000rpm direct drive, dual contact spindle
• Flexibility with the ability to add 4th/5th axis in the field
• 2,800 block/sec processing speeds for smoother and faster machining of complex work pieces
