U Mill Series

U Mill Series

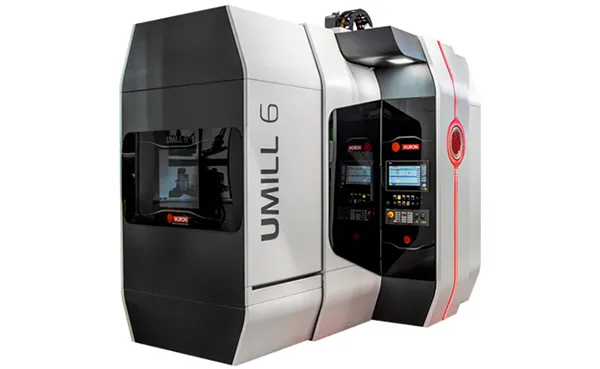

U-Mill 6 is 5-axis machining center designed with portal structure and cradle mounted swiveling rotary table to perform versatile application with greater speed, accuracy and reliability. The innovative compact design served minimal footprint without compromising fundamental characteristics of accuracy and performance. Directly coupled high speed spindle and high load carrying capacity of table improves adds to the machine performance. The series finds its suitability for high precision mechanical parts, automotive, railway, energy and aerospace.

Key Features

•   Modular designed rigid structure
•   Roller type LM to permit high rapid rate of 40 m/min.
•   High speed 10000rpm direct coupled spindle
•   Swiveling rotary table on cradle with 600kg load capacity.
•   Drum type 30 tool fast ATC.
•   Ergonomics design and aesthetic look.
•   Large accessibility from top and side.
•   Efficient chip flow and easy chip evacuation.
•   Electrical with quality device & panel AC.
•   Auto & manual coolant.
•   Centralized & programmable lubrication.
