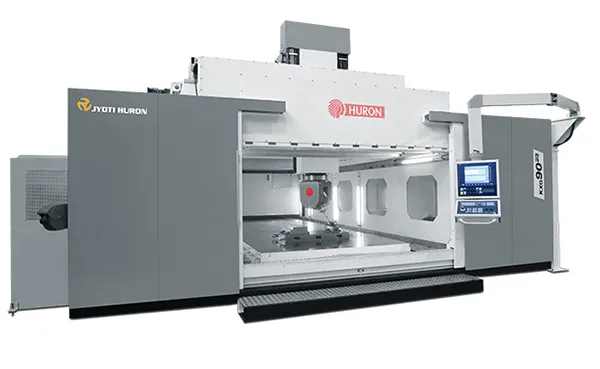

KXG Series

KXG Series

The KXG series enabling 5-axis, precision machining of large sized complex component in single setup from roughing to finishing operations. Machine is built with very high static and dynamic rigidity. Fixed walls in concrete specifically adapted to the harmonic requirements of the machine which maximises structure rigidity and allows maximum damping during demanding cutting conditions. 2-axis fork head with integrated torque motor and linear motor for linear axis enables high speed machining. Powerful high torque electro-spindle helps for high metal removal rate. The series finds wide range of application in Die-Mould machining, punches & tool machining and precision part machining for aeronautic, automotive.

Key Features

•   Moving gantry type rigid concrete walls structure.
•   Fork type milling head with 2 rotational direct driven B & C-axis.
•   Structure integrating large glasses allowing on easy control of machining.
•   Incremental measurement by optical encoders & glass scale.
•   Powerful high speed high torque electro-spindle.
•   40 tool ATC outside of working area.
•   60 m/min. rapid rates with high acceleration.
•   linear motors enables acceleration rates up to 18 m/s2
•   Table dimension up to 9000 x 2500 with load carrying capacity of 52 tons.
•   Greater accessibility for easy loading/unloading.
•   Centralized & programmable lubrication.
