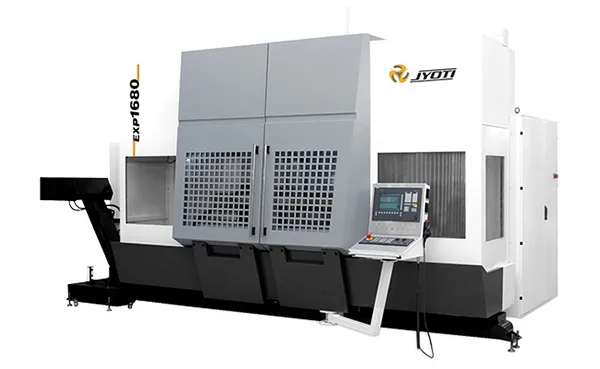

EX Series

EX Series

The Series matches demand of the performance and versatility for manufacturing of smaller complex shapes to larger heavy components manufacturing for aviation and allied sector. Modular, rigid & thermally stable architecture for large part machining for roughing to finishing operations. Options to choose for electro-spindle and rotary table arrangement provides wide range penetration for component manufacturing with high speed and heavy material removal rate. Applications like mould machining, blade machining, heavy geared shaft, heavy gear, large housing and intricate profiles are best suited with the series.

Key Features

•   Moving column structure.
•   Very high speed machine with high material removal rates.
•   Higher load carrying capacity of stationary table.
•   High speed electro-spindle.
•   Cont. servo P-type head for 5-axis machining (B-Axis : ±100°)
•   2-position N-type head
•   Different types of rotary table (A or C-axis) options
•   36 tool fast ATC kept outside of working area.
•   Wider roller type liner motion guide ways.
•   Very large accessibility from the top.
•   Electrical with quality device & panel AC.
•   Auto & manual coolant.
•   Centralized & programmable lubrication.
