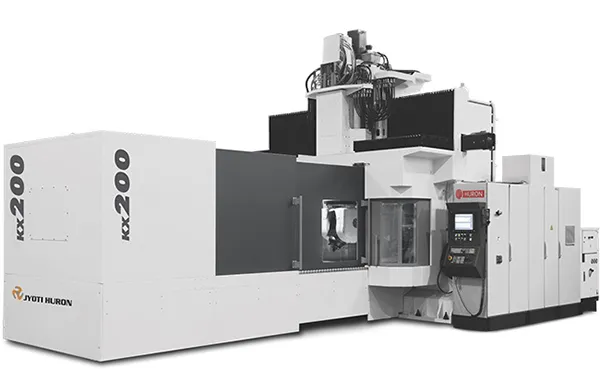

KX Large Series

KX Large Series

KX Large series is a range of high performance 5-axis double column machining centers for complex 3D contouring machining. The rigid structure loaded with fork type with 2-rotary axis milling head allows high speed cutting, feed rates and acceleration at minimum jerk. Optical measuring scale adds to greater accuracy and cutting performance. Several high torque electro-spindle and auto tool changer options available for different application base requirement. Exclusively fit for large sized die-mould, tool room, aerospace and precision engineering component.

Key Features

•   Portal, rigid, double column gantry type structure.
•   Forked milling head with 2 rotational direct driven B & C axis.
•   Harmonically & thermally stable machine.
•   High acceleration and high rapid rate up to 40m/min.
•   Incremental measurement by optical encoders.
•   High speed 20000rpm electro-spindle.
•   Large door opening for better accessibility.
•   High precision wider roller type liner motion guide ways.
•   30, 40 tool fast ATC Placed outside of working area.
•   Efficient chip flow and effective chip evacuation.
•   Electrical with quality device & panel AC.
•   Auto & manual coolant.
•   Centralized & programmable lubrication.
