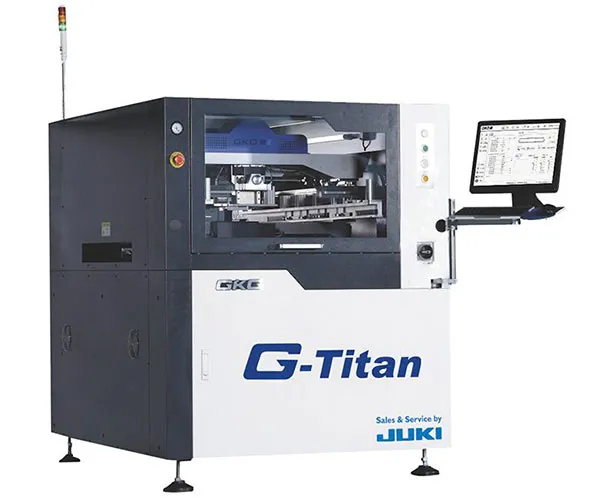

G TITAN

G TITAN

screen printer

JUKI's new stencil printer G-TITAN is taking the step towards Industry 4.0 and "Lights-Out-Manufacturing". A brand new GUI - Graphical User Interface, which is operated via a touch monitor, promises more ease of use. G-TITAN supports printed circuit boards up to 510 × 510 mm in size and is therefore aimed at demands in the middle segment. The terms OPC - Opti Paste Control - and QPC - Quality Print Control - summarize several useful individual functions, which together lead to optimal paste consumption, a higher degree of automation and the avoidance of errors in printing.

Automatic paste bead dispenser

The paste is automatically applied along the entire length of the squeegee, maintaining the 15 mm roller diameter. This counteracts the problem of overflowing solder paste.

Stencil opening inspection system

Using a light panel mounted above and a CCD camera below, the system inspects the stencil openings, eliminating defects from the start. The system ensures high print quality for each PCB model.
