Standard air intake filters

Standard air intake filters

SPECIFICATIONS

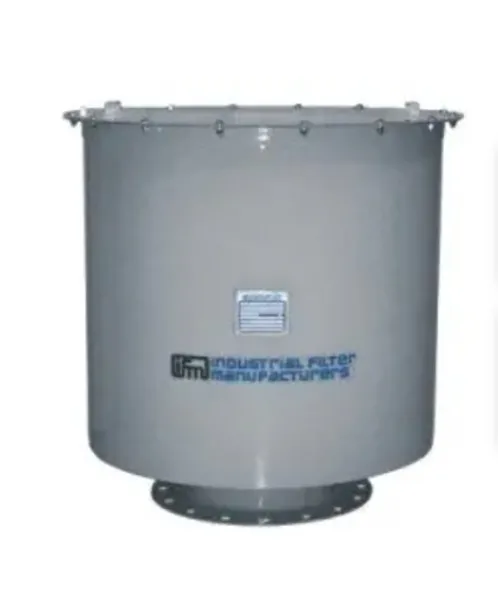

Designed for maximum protection, the efficient dry-type AF Series intake filter has very low initial resistance to air flow. This allows it to meet varying filtered air requirements for all types of equipment The all weather housing of heavy gauge carbon steel is furnished with a rust preventative primer coating beneath an all-weather paint. The rugged weather hood shields against entrance of rain or snow in outdoor service. The AF filter is designed to mount directly on the compressor blower, engine inlet or on a remote air inlet pipe.

Radial Fin filter element standard construction includes a durable felted polyester medium rated at 98% efficiency on 10 microns and larger. When conditions demand, alternate media of synthetic fibers or glasses can be supplied from .3 to 100 microns nominal retention.

A cleanable molded-end element is standard in models AF444-08 and smaller. Larger models are furnished with a cleanable, sewn end element. Following several field cleanings, the elements can be returned to the factory for rebuilding and reconditioning. Industrial Filter Manufacturers will also custom design to meet special application needs

Models AF030-05 and up have cover handles. Dimensions are in inches and are approximate. Subject to change without notice.
