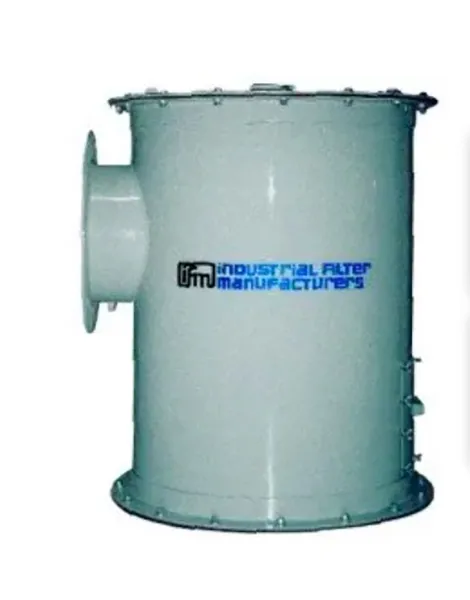

Closed Circuits air intake filters

Closed Circuits air intake filters

SPECIFICATIONS

Designed for maximum protection of centrifugal and axial compressors and blowers. The AFE2 Series efficiently removes dust, sand, oil mist, moisture and other airborne contaminants from air streams. The AFE2 filter is designed to mount directly on the compressor or blower inlet or on a remote inlet pipe. The all-weather housing is constructed of heavy gauge carbon steel with rust preventative epoxy primer coating under a polyurethane finish. The AFE2 housing can be installed upright or, for special applications, in a horizontal position.

PRIMARY STAGE ELEMENT has a contaminant removal efficiency of 98% on 10 microns and is cleanable and reusable.

SECONDARY STAGE ELEMENT has a contaminant removal efficiency of 98% on 2 microns, which will remove the fine particles and protect the compressor or blower impellers from erosion.

Dimensions are in inches and are approximate. Subject to change without notice.
