SPECIFICATIONS

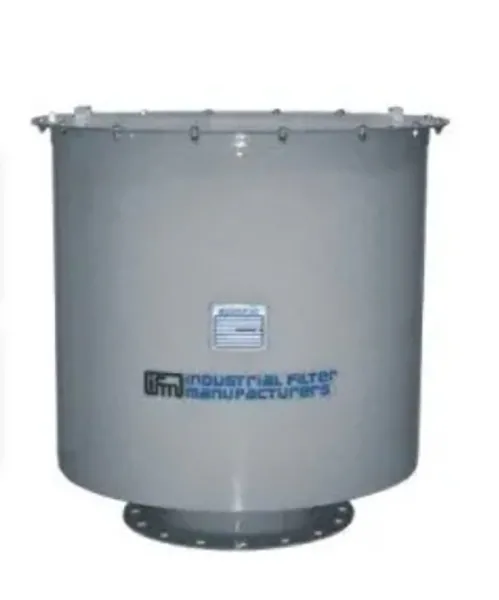

Engineered and designed to effectively reduce objectionable air intake noise on compressors, blowers and engines.
All the AFS filter/silencers incorporate and efficient dry type intake filter with a series of tubes to help meet acceptable industrial standards.
All weather housing of heavy gauge carbon steel is furnished with a rust preventative primer coating beneath an all-weather paint. The rugged weather hood shields against entrance of rain or snow in outdoor service. The AFS filter is designed to mount directly on the compressor, blower, and engine or on a remote air inlet pipe.
Radial Fin filter elements standard construction includes a durable felted polyester medium rated at 98% efficiency on 10 microns and larger. When conditions demand, alternate media of synthetic fibers or glasses can be supplied from .3 100 microns nominal retention.
A cleanable molded-end element is standard in models AFS444-08 and smaller. Larger models are furnished with a cleanable, sewn-end element. Following several field cleanings, element can be returned to the factory for rebuilding and reconditioning.
Industrial Filter Manufacturers will also custom design to meet special application needs.
Models AF030-05 and up have cover handles. Dimensions are in inches and are approximate. Subject to change without notice.
Models AF030-05 and up have cover handles. Dimensions are in inches and are approximate. Subject to change without notice.
