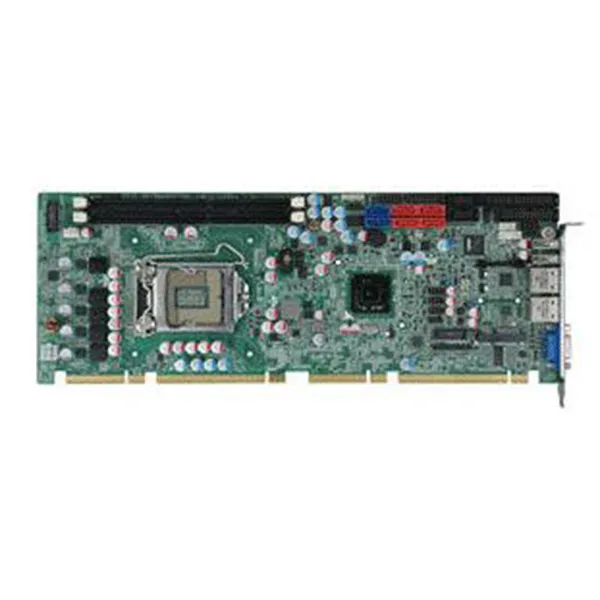

Single Board Computers SPCIE-C2160
Features
Specifications
CPU
LGA1155 socket supports LGA1155 Intel® Xeon® E3/Core™ i3/Pentium®/Celeron® processor
System Chipset
Intel® C216
BIOS
UEFI BIOS
System Memory
Two 240-pin 1600/1333MHz dual-channel ECC and non-ECC unbuffered DDR3 SDRAM DIMMs supported (system max.16GB)
Ethernet
LAN1: Intel® 82574L PCIe controller
LAN2: Intel® 82579 PHY with Intel® AMT 8.0 support
I/O Interface
4 x RS-232
1 x RS-422/485
1 x LPT
1 x 6-pin wafer for KB/MS
8 x USB 2.0 (2 by rear IO, 6 by on-board pin header)2 x SATA 6Gb/s (RAID 0/1/5/10 supported)
Digital I/O
8-bit digital I/O (4-bit input, 4-bit output)
Super I/O
Fintek F81866
Infrared
1 x 5-pin header
TPM
1 x TPM connector (2x10 pin)
SMBus
1 x 4-pin wafer
Audio
Supports by IEI AC-KIT-892HD-R10 audio kit
Display Interfaces
1 x VGA
1 x DVI-D (via header to IO-KIT-001-R20 DVI-D/USB module) (optional)
Expansion
PCIe signal and PCI signal via golden finger
1 x PCIe Mini slot (with USB 1.1/2.0 signal)
Watchdog Timer
Software programmable supports 1~255 sec. system reset
Power Supply
AT/ATX power supply supported
Power Consumption
5V@3.98A, 12V@0.38A, Vcore_12V@7.81A, 3.3V@1.61A, 5VSB@0.15A
(3.4GHz Intel® Xeon® 2.2GHz with two 2GB 1333MHz DDR3 memory)
Graphic
Intel® HD Graphics Gen 7 supports DX11 and OpenCL 1.1
Full MPEG-2, VC1, AVC decoding
Operating Temperature
-10°C ~ 60°C
Storage Temperature
-20°C ~ 70°C
Humidity
5% ~ 95%, non-condensing
Dimensions
338 mm x 126 mm
Weight
GW: 1200g/NW: 420g
Front Panel
1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)
I2C
Fan Connector
1 x 4-pin smart fan connector
