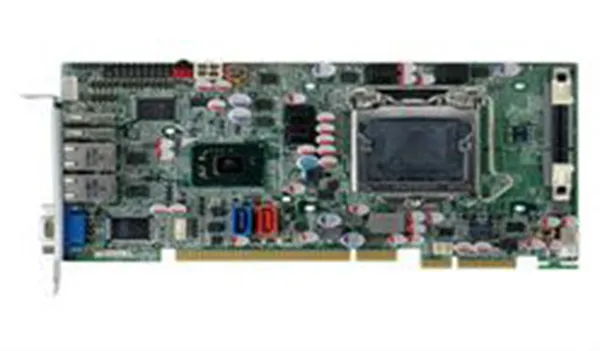

PICOe-B650 - PCI Express Half Size SBC

PICOe-B650 - PCI Express Half Size SBC

Features

Half-size PCIe CPU card with LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported
One 1333/1066 MHz DDR3/DDR3L (1.35V) SDRAM SO-DIMM supports up to 8GB
On-board embedded controller supports infrared and PECI 2.0 technologies
One SATA 6Gb/s and dual Realtek PCIe GbE
Rich media acceleration for hardware encoding and decoding
TPM V1.2 hardware security provided by the TPM module
IEI One Key Recovery solution allows you to create raipd OS backup and recovery

Specifications

CPU	LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor
System Chipset	Intel® B65
BIOS	UEFI
System Memory	One 204-pin 1333/1066MHz DDR3 & DDR3L (1.35V) SO-DIMM supported (system max. 8GB)
Ethernet	Dual Realtek RTL8111E PCIe GbE controller Ordering Info
