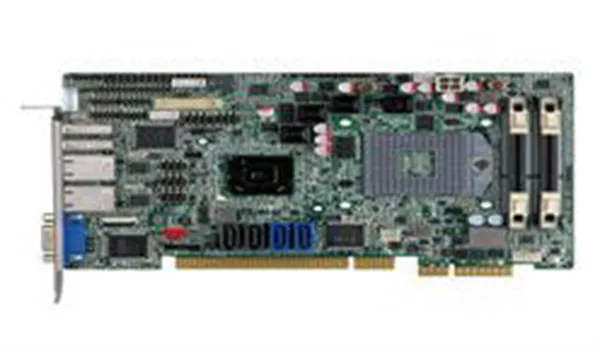

PICOe-HM650 - PCI Express Half Size SBC

PICOe-HM650 - PCI Express Half Size SBC

Features

Half-size PCIe CPU card supports Socket G2 32nm Intel® Core™ i7/i5/i3/Celeron® processor
Up to 16 GB 1333/1066 MHz dual-channel DDR3 SDRAM
Supports 18/24-bit dual-channel LVDS and analog CRT output
High-speed I/O Interface provided through the 2nd gen PCIe add-on card and SATA 6Gb/s connectors
Rich media acceleration for hardware encoding and decoding
TPM V1.2 hardware security provided by the TPM module
IEI One Key Recovery solution allows you to create raipd OS backup and recovery

Specifications

CPU	Socket G2 supports Intel® Core™ i7/i5/i3/Celeron® processor
System Chipset	Intel® HM65
BIOS	UEFI
System Memory	Two 204-pin 1333/1066 MHz dual-channel DDR3 SO-DIMMs supported (system max. 16GB)
Ethernet	Dual PCIe Realtek RTL8111E GbE controller, LAN1 with ASF 2.0 supported
I/O	1 x RS-422/485 2 x RS-232 2 x SATA 3Gb/s 2 x SATA 6Gb/s 1 x LPT 1 x 6-pin for KB & MS 8 x USB 2.0 (2 on rear, 6 by pin header)
Digital I/O	8-bit digital I/O (4-bit input, 4-bit output)
Super I/O	Fintek F81866
TPM	1 x 20-pin header
SMBus	1 x 4-pin wafer
Audio	Supports 7.1 channel HD audio by IEI AC-KIT-888HD kit
Display Interfaces	Dual display supported 1 x VGA 1 x 18/24-bit dual-channel LVDS
Expansion	PCIe signal and PCI signal via golden finger
Watchdog Timer	Software programmable supports 1~255 sec. system reset
Power Supply	5V/12V, AT/ATX support
Power Consumption	5V@3.99A, 12V@0.43A, Vcore_12V@3.80A, 5VSB@0.06A (2.70GHz Intel® Core i7-2620M with two 2GB 1333MHz DDR3 memory)
Graphic	Intel® HD Graphics Gen 6 support for DX10.1 and OpenGL 3.0 Full MPEG2, VC1, AVC Decode
Temperature	-10°C ~ 60°C
Humidity	5% ~95%, non-condensing
Dimensions	185 mm x 122 mm
Weight	GW: 1000g/NW: 260g
Embedded Controller	ITE IT8519E
I2C	1 x 4-pin wafer
PCIe-PCI Bridge	ITE IT8892E
Fan Connector	1 x 4-pin smart Fan Connector; 1 x 3-pin system Fan Connector
